The hospital bed for young people

Seta pro junior

Children and adolescents feel a particular need for warmth and security when they are in hospital. The Seta pro junior promotes speedy recovery. Thanks to its 78 x 180 cm mattress base, it provides ample room for children and teens. With its fully motorised adjustability, it offers the same level of comfort as the adult model of the Seta pro. Great care has been taken to ensure that young patients cannot get trapped or adjust the bed unintentionally.

Model facts

Suitable for children up to 155 cm in height
Mattress base dimensions 78 x 180 cm
Height adjustment range from 35 to 91 cm
Full-length safety side integrated securely in the headboard and footboard

Advantages for you

Relieving the strain on nursing staff

Motorised adjustment

Effortless operation using the handset or control box
Easy bed adjustments into all medical positions
Brake signal, under bed light and backrest angle indicator on LCD handset as optional aids

for more protection

Integrated safety side

Full-length safety side integrated robustly in the headboard and footboard
Optimum protection for patients who are prone to falling
Allows quick and intuitive operation by care staff

for a reliable supply

Tailor-made accessories

External patient lifting pole for good care without any potential pinch points
Crosspieces in the grab handle make it impossible for a child’s head to fit through
A perfect-fit, non-sliding mattress blocks access to the chassis and prevents gaps forming between the safety sides and the bed frame

All additional information at a glance

We are pleased to provide our informational materials for you to download.

Brochure hospital bed Seta pro junior (english)
pdf, 445 KB

Your advantages

SAFETY – The entire bed is designed so that there are no accessible niches or gaps in which children could get trapped. The handset and the control box can be locked away, if necessary.

LONG LIFE – The safety sides that are securely integrated in the head and footboard are a trademark of the Seta pro range and ensure particular robustness in everyday use.

STYLE – With its clear lines and crystal white colouring, the Seta pro junior looks bright, friendly and inviting. Young patients will quickly feel at ease in this bed.

Since the safety side is anchored directly in the headboard and footboard, there is no space in between where children ...

The spaces between the mattress base sections are covered to make them inaccessible. Even if small patients reach under ...

The entire bed is devoid of any accessible openings in which children could trap their fingers or toes.

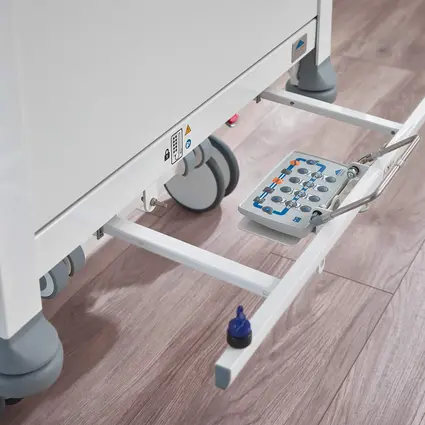

The control box in the linen holder is fitted with a magnetic lock to prevent unauthorised removal.

When not in use, the handset and its cable can be stowed away safely in boxes at either side of the mattress base. ...

Technical specifications

The following overview presents the technical data and equipment options for this model of bed. With a tailor-made configuration and visual design, and with suitable accessories, you can plan a bed that precisely matches your requirements and your interior design. Your area sales manager will be pleased to inform you about all the options.

	Seta pro junior
Mattress base in cm (mattress dimensions) in cm	78 x 180
External dimensions in cm	92,8 x 193
Safe working load in kg	175
Ground clearance of chassis in cm	16,9
Total weight in kg	155
Tilting to Trendelenburg position in °	17
Tilting to reverse-Trendelenburg position in °	17
Mattress base height in cm (from - to)	35 – 91
Backrest angle in °	70
Thigh rest angle in ° ca.	35
Fowler position angle	16
Decontamination, degree of protection – manual reprocessing, IPX6

* = Not available in all colors
= Standard
= Optional
= Not available

	Seta pro junior
PP hygiene mattress base
4-section mattress base

* = Not available in all colors
= Standard
= Optional
= Not available

	Seta pro junior
Protective height of safety sides	36,5

* = Not available in all colors
= Standard
= Optional
= Not available

	Seta pro junior
Integral castor Ø 150 mm
Conductive castor coating: 1 castor
Conductive castor coating: 2 castors
Conductive castor coating: 4 castors
Steinco double castor Ø 150 mm
4 wall deflection rollers, universal, all sides
4 wall deflection rollers, universal, all sides
Wall deflection rollers: 2 universal at head end, 2 plastic at foot end
Brake pedal: 2 x die-cast, chrome-plated with coloured marking
Brake pedal: 4 x die-cast, chrome-plated with coloured marking
Directional castor position: head end, right
Directional castor position: foot end, left
Directional castor position: foot end, left
Directional castor position: foot end, right
Central castor locking

* = Not available in all colors
= Standard
= Optional
= Not available

	Seta pro junior
Head and footboard design – base, not removable
Crystal paint colour
Azur decor (0744-60)
Baltic Sea decor (0475-60)
Eternal Cherry decor (4325-60)
Global Beech decor (4306-60)
Gold decor (0446-60)
Noce Lyon decor (4232-60)
Noce Praliné decor (4452-60)
Ottawa Maple decor (4209-60)
Silver Grey decor (0160-60)
Snow White decor (9417-60)
Storm decor (10542-60)
Valley Oak decor (4166-60)

* = Not available in all colors
= Standard
= Optional
= Not available

	Seta pro junior
Control box in the linen holder
Lead-gel battery
Lithium-ion battery
Under bed light
Brake signal
Standard sliding rail at head end
1 LCD handset, including 2 compartments
1 standard handset, including 2 compartments
1 standard handset, illuminated, including 2 compartments
Control box in the lockable linen holder
Backrest angle indicator on LCD handset

* = Not available in all colors
= Standard
= Optional
= Not available
