The flexible stretcher

Mobilo

All additional information at a glance

We are pleased to provide our informational materials for you to download.

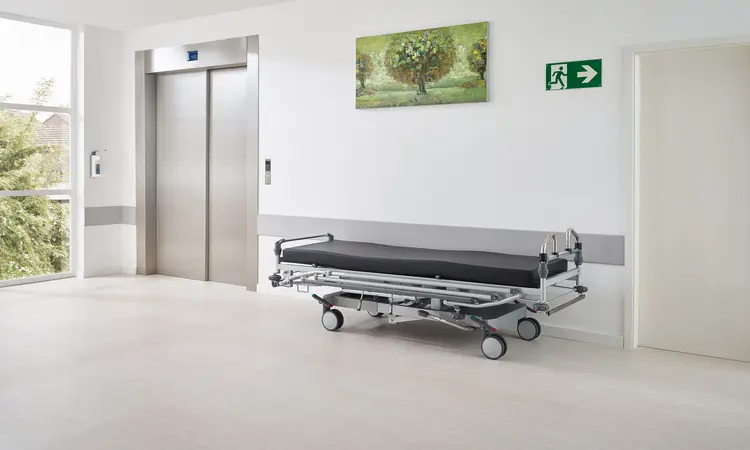

The Stiegelmeyer Mobilo is one of the most universal stretchers for use in the demanding hospital sector. With its sophisticated design, it adapts to the versatile requirements of complex hospital procedures. The Mobilo offers a high degree of safety and comfort for the patient due to its construction and its extensive equipment. The stretcher can therefore be used not only in the outpatient department, but also as a bed for day patients.



Facts about the model

  • Quick to manoeuvre due to ergonomic, radiolucent backrest
  • 4-section mattress base
  • Tilting to up to 12° Trendelenburg position possible
  • Fitted with sliding rails for attaching accessories

The advantages for you


The Mobilo makes everyday care easier. Not only for the patients during their short stay but also for the nursing staff.




Technical specifications


The following overview presents the technical data and equipment options for this stretcher. In a tailor-made configuration and visual design, and with suitable accessories, you can plan a bed that precisely matches the requirements and interior design of your hospital. Your area sales manager will be happy to inform you about all the possibilities.



Mobilo
Overall dimensions87 x 218.5 cm
Mattress base (mattress dimensions)70 x 200 cm
Mattress height10 cm
Safe working load200 kg
Maximum lifting capacity250 kg
Ground clearance with mattress base in lowest positionapprox. 9 cm
Total weightapprox. 130 kg
Mattress base in 2 sections74 cm - 117.5 cm
Mattress base in 4 sections74 cm – 13 cm – 37.7 cm – 61.8 cm
Protection height of safety sides35 cm
  • = Standard
  • = Available as an option
  • = Not available

Mobilo
Tiltable to Trendelenburg and reverse-Trendelenburg position12°
Mattress base heightapprox. 47 – 79 cm
Backrest angle70°
Thigh-rest angle (with mattress base in 4 sections)45°
  • = Standard
  • = Available as an option
  • = Not available

Mobilo
Safety side
With safety sides on both sides
Base colour
Argentum, similar to RAL 9006
Mattress bases
2-section mattress base
4-section mattress base
Wall deflection rollers
6, two of which are horizontally and vertically effective
Castors with central locking
Double castor Ø 150 mm
Integral castor Ø 200 mm
Directional castor positions
Head end, right
Head end, left
Foot end, right
Foot end, left
Conductive castor coating
1 castor
2 castors
4 castors
Additional features
Food tray and X-ray cassette holder
Resuscitation support
  • = Standard
  • = Available as an option
  • = Not available
