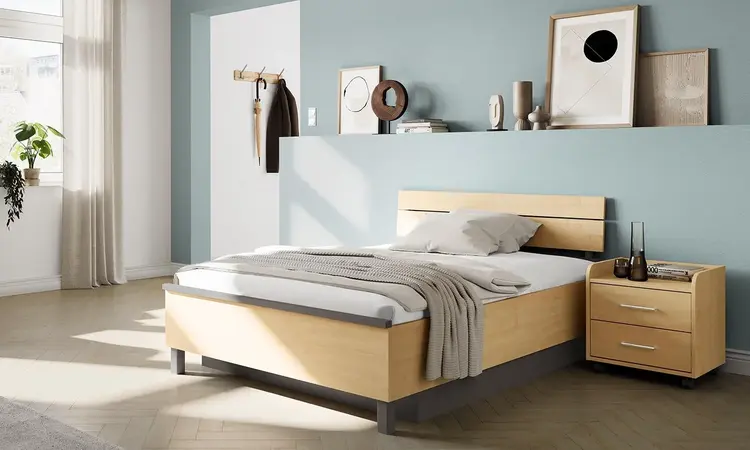

The height-adjustable bed insert - comfort and care in your existing bed

Lippe range

Bed inserts from the Lippe range are easy to insert into an existing bed frame and offer all the benefits of an electrically adjustable care bed.

ON THIS PAGE YOU WILL FIND :

Model facts

  • Height adjustment range 29 - 74 cm
  • 4-section mattress base
  • Selectively lockable handset
  • Cost-saving 24-volt drive system

Model variants

The flexible bed insert

Lippe IV

  • Mattress base widths from 80, 90 or 100 cm, lengths of 190 or 200 cm
  • Mattress held securely by 5th mattress retainer bar
  • Safe working load 200 kg

Optimum hygiene

Lippe IV waschbar

  • Designed for mechanical treatment in a washing system
  • Cathodic dip coating against corrosion
  • Supports and protects medical retailer personnel

Mehr Platz und Komfort

Lippe 120/140

  • Liegeflächenmaße 120 x 200 oder 140 x 200 cm
  • optionale Bettverlängerung um 20 cm
  • hohe sichere Arbeitslast von 250 kg

All additional information at a glance

We are pleased to provide our informational materials for you to download.

The advantages for you

HOMELIKE COMFORT - Thanks to their space-saving chassis, all Lippe models fit into virtually any existing bed and usually remain invisible, and thus do not detract from the familiar appearance of the bedroom.



24-VOLT SYSTEM - Benefit from greater safety and up to 93% lower power consumption.



ACCESSORIES - Adaptable safety sides or a stand-up aid promote extra protection and mobility.



The Lippe IV electric bed insert
The Lippe IV bed insert is easy to fit into almost every existing bed frame.

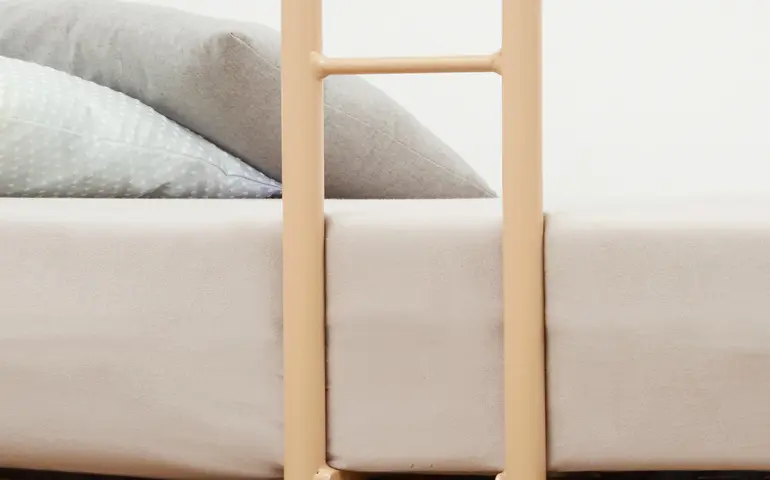

Optional mobilisation aid for the Lippe IV bed insert
The optional aid to standing up promotes residents’ mobility.
Feet with floor-levelling screws for the Lippe IV bed insert
Feet with floor-levelling screws ensure excellent stability.
Optional adjustable feet for the Lippe IV bed insert
Optional adjustable feet make it possible to raise the bed insert by up to 7 cm.
Komfortabler Betteinsatz Lippe 120/140
With its wide range of mattress base dimensions, the Lippe 120/140 it is particularly roomy and comfortable.
Selektiv sperrbarer Handschalter für den Betteinsatz Lippe 120/140
Lippe bed inserts can be operated easily and intuitively using the handset with its selectively lockable features.
Optionale Aufstehhilfe für den Betteinsatz Lippe 120/140
The optional mobilisation aid for the Lippe 120/140 helps the resident to get out of bed.
Optionaler Aufrichter für den Betteinsatz Lippe 120/140
The optional lifting pole helps the resident to get comfortably positioned in the bed.
Optionale Bettverlängerung für den Betteinsatz Lippe 120/140
A 20-cm bed extension is available for the Lippe 120/140.
Bodenausgleichsschrauben des Betteinsatzes Lippe 120/140
Floor-levelling screws and fixing straps for a stable stance of the Lippe 120/140.
Wohnliche Kombination aus Lippe und Relax
Virtually every Lippe model can be combined with the attractive Relax bed frame.
Lippe IV waschbar für maschinelle Aufbereitung
The Lippe IV washable is designed for automated reprocessing and offers optimal hygiene.
Kombination aus Betteinsatz Lippe IV und Bettumbau Relax
When in place in the Relax bed frame, the Lippe IV normally remains invisible.
Lager- und Transporthilfe des Betteinsatzes Lippe IV waschbar
The machine-washable version of the Lippe IV is transferred to the wash cell on a storage and transport aid.
Wohnliche Kombination aus Betteinsatz Lippe IV waschbar und Betteinsatz Relax
The Lippe IV washable bed insert fits into the attractive Relax bed frame.
Großer Höhenverstellbereich des Betteinsatzes Lippe IV waschbar
With its large height adjustment range of 29 to 74 cm, the Lippe IV washable helps to prevent falls.
Niedrige Tiefposition des Betteinsatzes Lippe IV waschbar
The lowest position of only 29 cm of the Lippe IV washable protects against falls without the use of liberty-depriving ...
Optionaler Aufrichter für den Betteinsatz Lippe IV waschbar
The optional lifting pole with the triangular handle helps the resident to get comfortably positioned in the bed.
Großer Höhenverstellbereich des Betteinsatzes Lippe 120/140
Its large height adjustment range of 29 to 74 cm ensures that the Lippe 120/140 is always in the ideal position.
24-Volt-Antriebssystem für die Lippe-Betteinsätze
The safe, energy-saving 24-volt drive system produces a safety extra-low voltage directly at the socket.
Optionale Verbreiterungsschienen für den Betteinsatz Lippe IV
With optional widening rails that add 5 cm per side to the Lippe IV, the mattress base of the Lippe IV can be widened ...
The Lippe IV electric bed insert
The Lippe IV bed insert is easy to fit into almost every existing bed frame.
Optional mobilisation aid for the Lippe IV bed insert
The optional aid to standing up promotes residents’ mobility.
Feet with floor-levelling screws for the Lippe IV bed insert
Feet with floor-levelling screws ensure excellent stability.
Optional adjustable feet for the Lippe IV bed insert
Optional adjustable feet make it possible to raise the bed insert by up to 7 cm.
Komfortabler Betteinsatz Lippe 120/140
With its wide range of mattress base dimensions, the Lippe 120/140 it is particularly roomy and comfortable.
Optionale Aufstehhilfe für den Betteinsatz Lippe 120/140
The optional mobilisation aid for the Lippe 120/140 helps the resident to get out of bed.
Optionaler Aufrichter für den Betteinsatz Lippe 120/140
The optional lifting pole helps the resident to get comfortably positioned in the bed.
Selektiv sperrbarer Handschalter für den Betteinsatz Lippe 120/140
Lippe bed inserts can be operated easily and intuitively using the handset with its selectively lockable features.
Optionale Bettverlängerung für den Betteinsatz Lippe 120/140
A 20-cm bed extension is available for the Lippe 120/140.
Bodenausgleichsschrauben des Betteinsatzes Lippe 120/140
Floor-levelling screws and fixing straps for a stable stance of the Lippe 120/140.
Kombination aus Betteinsatz Lippe IV und Bettumbau Relax
When in place in the Relax bed frame, the Lippe IV normally remains invisible.
Lager- und Transporthilfe des Betteinsatzes Lippe IV waschbar
The machine-washable version of the Lippe IV is transferred to the wash cell on a storage and transport aid.
Wohnliche Kombination aus Lippe und Relax
Virtually every Lippe model can be combined with the attractive Relax bed frame.
Lippe IV waschbar für maschinelle Aufbereitung
The Lippe IV washable is designed for automated reprocessing and offers optimal hygiene.
Wohnliche Kombination aus Betteinsatz Lippe IV waschbar und Betteinsatz Relax
The Lippe IV washable bed insert fits into the attractive Relax bed frame.
Großer Höhenverstellbereich des Betteinsatzes Lippe IV waschbar
With its large height adjustment range of 29 to 74 cm, the Lippe IV washable helps to prevent falls.
Optionaler Aufrichter für den Betteinsatz Lippe IV waschbar
The optional lifting pole with the triangular handle helps the resident to get comfortably positioned in the bed.
Niedrige Tiefposition des Betteinsatzes Lippe IV waschbar
The lowest position of only 29 cm of the Lippe IV washable protects against falls without the use of liberty-depriving ...
Großer Höhenverstellbereich des Betteinsatzes Lippe 120/140
Its large height adjustment range of 29 to 74 cm ensures that the Lippe 120/140 is always in the ideal position.
24-Volt-Antriebssystem für die Lippe-Betteinsätze
The safe, energy-saving 24-volt drive system produces a safety extra-low voltage directly at the socket.
Optionale Verbreiterungsschienen für den Betteinsatz Lippe IV
With optional widening rails that add 5 cm per side to the Lippe IV, the mattress base of the Lippe IV can be widened ...

Technical specifications

The following overview presents the technical data and equipment options for this model of bed. With a tailor-made configuration and visual design, and with suitable accessories, you can plan a bed that precisely matches your requirements and your home furnishings. Your area sales manager will be happy to inform you about all the options.

Lippe Lippe wash Lippe 120 / 140
External dimensions in cm 85 x 185 / 85 x 195 / 95 x 185 / 95 x 195 / 75 x 185 / 75 x 195 85 x 185 / 85 x 195 115 x 195 / 135 x 195
Mattress base in cm (mattress dimensions) in cm 100 x 190 / 90 x 190 / 90 x 200 / 100 x 200 90 x 200 140 x 200, 120 x 200
Safe working load in kg 200 200 250
Maximum weight of patient in kg ca. 160 160 210
  • * = Not available in all colors
  • = Standard
  • = Optional
  • = Not available

Lippe Lippe wash Lippe 120 / 140
Tilting to reverse-Trendelenburg position in ° - - -
Backrest angle in ° 0 - 72 0 - 72 0 - 73
Thigh rest angle in ° ca. 0 - 31 0 - 31 0 - 31
Angle thigh rest - lower leg rest 128 - 180 128 - 180 128 - 180
Lower leg rest angle (with a ratchet) in ° 0 - 21 0 - 21 0 - 21
Adjustment range of lower leg rest in cm 14 14 17
Fowler position angle in ° - - -
