The friendly children’s bed

Cuddle

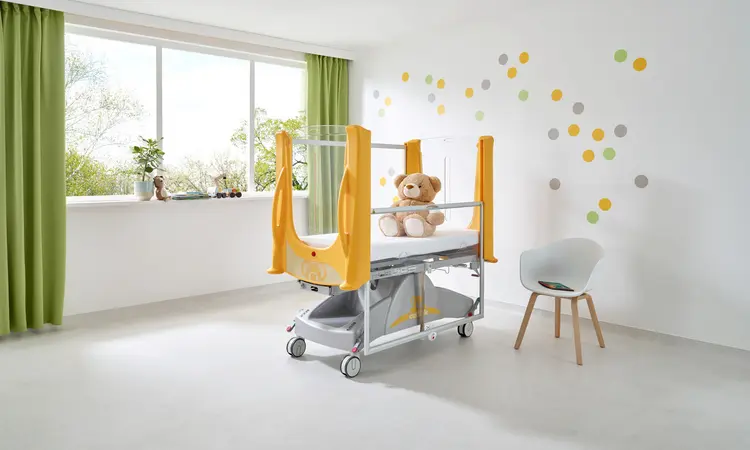

The Cuddle children’s bed affords ideal protection for young patients and supports nursing staff with its electric adjustment options and ease of handling. A free view of the room and a cheerful design help to put children at ease during their stay in hospital.

Model facts

  • Mattress base 72.5 x 132.6 cm
  • Safe working load of 100 kg
  • Height adjustment range of 70.7 – 110.7 cm
  • Tiltable to Trendelenburg and reverse-Trendelenburg position of up to 12°

Advantages for you

All-round protection

Safety side with aluminium bars

  • Silver-finish aluminium bars
  • Bars allow contact with the patient
  • Protective height of raised safety side 80.4 cm

Bed with a free view

Safety side made of transparent polycarbonate

  • Unobstructed view of the patient thanks to transparent polycarbonate
  • Bars allow contact with the patient
  • Protective height of raised safety side 80.4 cm

All additional information at a glance

We are pleased to provide our informational materials for you to download.

The advantages for you

POSITIVE ATMOSPHERE – With three cheerful colours to choose from, you can match the bed’s plastic elements to any interior.

COMFORTABLE OPERATION – Electric adjustment of the bed’s mattress base and height is easy with the control box.

PRACTICAL ACCESSORIES – Options include infusion stands with 2 or 4 hooks and a mattress with a waterproof cover.

Technical specifications

The following overview presents the technical data and equipment options for this model of bed. With a tailor-made configuration and visual design, and with suitable accessories, you can plan a bed that precisely matches your hospital’s requirements and interior design. Your area sales manager will be happy to inform you about all the possibilities.

Cuddle
Mattress base in cm (mattress dimensions) in cm 72,5 x 132,6
External dimensions in cm 162,5 x 86,4 x 157,2 (L x B x H)
Safe working load in kg 100
Ground clearance of chassis in cm 14,5 cm
Total weight in kg approx. 137 kg
Tilting to Trendelenburg position in ° 12
Tilting to reverse-Trendelenburg position in ° 12
Mattress base height in cm (from - to) 70,7 – 110,7
Backrest angle in ° 70
  • * = Not available in all colors
  • = Standard
  • = Optional
  • = Not available

Cuddle
Mattress base division in cm 47,6-85
2-section HPL mattress base
  • * = Not available in all colors
  • = Standard
  • = Optional
  • = Not available

Cuddle
Protective height of safety sides 80.4
Safety side with aluminium bars
Safety side made of transparent polycarbonate
Safety side with concealed release mechanism
  • * = Not available in all colors
  • = Standard
  • = Optional
  • = Not available

Cuddle
Double castor Ø 125 mm
Central castor locking
Conductive castor covering on one castor
  • * = Not available in all colors
  • = Standard
  • = Optional
  • = Not available

Cuddle
Manual reprocessing, IPX6
Plastic elements in yellow
Plastic elements in green
Plastic elements in blue
Headboard/footboard made of removable transparent polycarbonate inserts
  • * = Not available in all colors
  • = Standard
  • = Optional
  • = Not available

Cuddle
Lead-gel battery
Under bed light
Standard sliding rail at head end
Backlit control box
Drawer for control box at foot end, lockable
Storage surface on the chassis
Infusion stand with 2 hooks
Infusion stand with 4 hooks
Mattress with waterproof cover
Oxygen bottle holder
Holder for urine and drainage bags
  • * = Not available in all colors
  • = Standard
  • = Optional
  • = Not available
