The elegant choice - Inovia meets the highest demands in home care

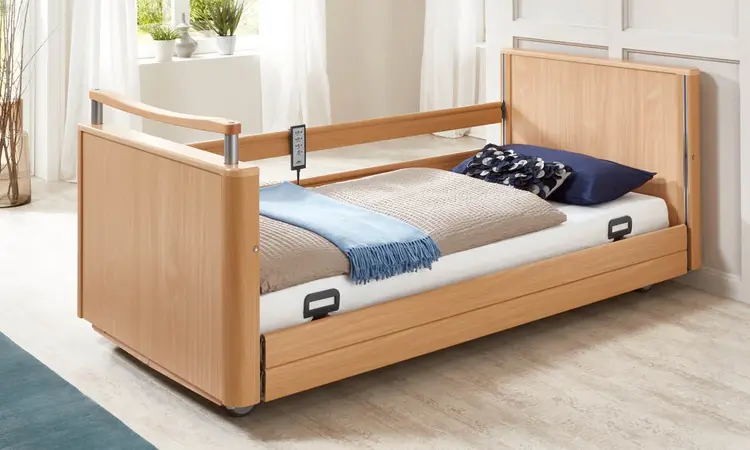

Inovia

The Inovia combines all the strengths you would expect from a modern, comfortable care bed today. It is aimed at discerning private customers.

Model facts

  • Low-height bed with height adjustment from 22 - 77 cm
  • Safe working load 225 kg
  • Cost-saving 24-volt drive system
  • Easy-to-clean metal slat mattress base

Advantages for you

Tailored protection

Telescopic safety sides

  • Split safety side with an attractive appearance
  • Each element can be raised in 2 stages
  • Protection and orientation for every requirement

Enhanced everyday comfort

Mattress base width 100 cm

  • Mattress base dimensions 100 x 200 cm
  • Optional bed extension of up to 27 cm
  • Ideal for heavier persons

Opulent headboards/footboards

Homelike appearance

  • Homelike head and footboards
  • Head and footboards optionally with handle bar
  • Elegant Natural Beech and Havana Cherry wood decors

All additional information at a glance

We are pleased to provide our informational materials for you to download.

The advantages for you

LOW-HEIGHT BED - With a height adjustment range extending from a very low 22 cm to 77 cm, the Inovia promotes fall prevention without the use of liberty-depriving measures (DoLS) and at the same time permits ergonomic care.



SITTING POSITION - The Inovia can be brought into a comfortable easy chair position with the selectively lockable handset.



24-VOLT SYSTEM - Safe drive with energy savings of up to 93%

Technical specifications

The following overview presents the technical data and equipment options for this model of bed. With a tailor-made configuration and visual design, and with suitable accessories, you can plan a bed that precisely matches your requirements and your home furnishings. Your area sales manager will be happy to inform you about all the options.

Inovia
Mattress base in cm (mattress dimensions) in cm 90 x 200, 100 x 200
External dimensions in cm 105 x 220, 115 x 220
Bed extension in cm 20 (DSG); 27 (TSG)
Ground clearance in cm 20
Safe working load in kg 225
Total weight in kg 153, 159
Maximum weight of patient in kg 185
Tilting to reverse-Trendelenburg position in ° 10
Mattress base height in cm (from - to) 22 - 77
Auto contour adjustment / Fowler position
Manual CPR release of the backrest
Electrically adjustable
24-volt drive concept with external transformer
  • * = Not available in all colors
  • = Standard
  • = Optional
  • = Not available

Inovia
Metal slats
Mattress base not dismantleable
4-section mattress base
  • * = Not available in all colors
  • = Standard
  • = Optional
  • = Not available

Inovia
Protective height of safety sides 41
Full-length safety side
Split safety side – telescopic
  • * = Not available in all colors
  • = Standard
  • = Optional
  • = Not available

Inovia
Castor diameter in mm 100
Castor braking, per axle
  • * = Not available in all colors
  • = Standard
  • = Optional
  • = Not available

Inovia
Argentum paint colour
Natural Beech decor (R 24010 VV)
Havana Cherry decor (R 42006 VV)
Model-related headboard, closed surface
Model-related footboard, closed surface
Model-related footboard with handle bar
Model-related footboard with handle bar
  • * = Not available in all colors
  • = Standard
  • = Optional
  • = Not available

Inovia
Foot pedal
Selective locking feature
  • * = Not available in all colors
  • = Standard
  • = Optional
  • = Not available
