The modular hospital bed

Evario one

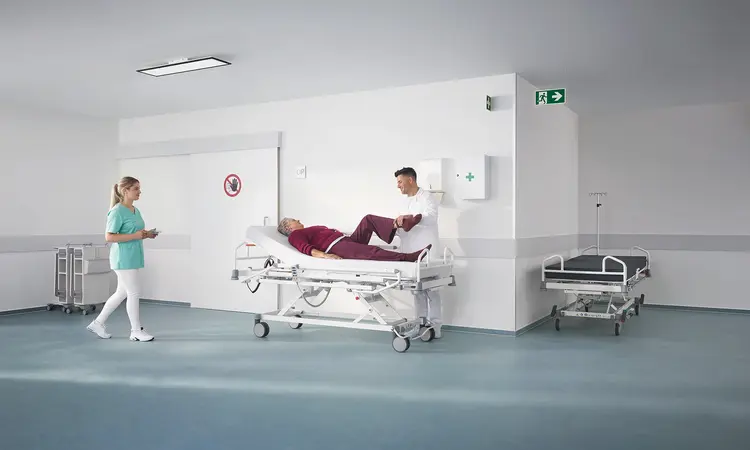

In order to relieve stress and physical strain in everyday hospital life, medical products must bring particular advantages to the job: they should be safe, easy to use and support patients and nursing staff in the best possible way. It was these essential qualities that we focused on when developing the Evario one. The fully motorised hospital bed combines many helpful functions with a modern design. The Evario one has been tested far beyond current standards so you can rely on its high quality and durability.

Model facts

High safe working load of 250 kg, including during battery operation
Height adjustment range of 36 to 82 cm, depending on the type of castor
Choice of three easy-to-use safety sides
Attractive, modern look in Intercontinental design

Advantages for you

Full protection

Split 50/50 safety side

50/50 safety side is ideal for e.g. intensive care
Fixed headboard (optional)
X-ray backrest (optional)
Attachment options for accessories

Modern and hygienic

Split safety side

Protects patients combined with the freedom to get in and out of bed
Aids early mobilisation and recovery of patients
One-hand operation
Large flat surfaces facilitate thorough manual cleaning

The space-saving model

Pivoting ¾ safety side

Can be swivelled down effortlessly towards the foot end
Requires no extra bedside space – ideal for small multi-bed rooms
The slim bars, when lowered, do not conceal fixtures on accessory rails along the bed.
The intuitive handset is within easy reach when hung from the safety side

Accessories for optimum protection

Gap closure

Both safety sides leave room at the foot end to get in and out of bed
Optional infill pieces to close the gap are easy to attach without tools
Optimum protection for patients who are prone to falling
Interchangeability between multiple beds makes them more cost-effective

All functions available at the point of care

“Light”-version control panel

Can optionally be integrated in split safety sides at the head end
Convenient adjustment options for patients on the inward-facing side of the bed
Additional emergency and maintenance functions for nurses and service staff on the outward-facing sides of the bed.
The panel moves along with backrest adjustments, providing ideal accessibility at the point of care

All additional information at a glance

We are pleased to provide our informational materials for you to download.

Brochure hospital bed Evario one (english)
pdf, 3 MB

The advantages for you

CHOOSE YOUR PREFERRED CONTROL CONCEPT:
Ideal integrated resources are available for controlling the Evario one – an ergonomic handset, the “light”-version integrated control panel (in conjunction with split safety sides), the nurse control at the foot end available in different sizes (S and M) and a practical foot pedal for adjusting the height. An ideal combination is available for every type of use.

HELP IN AN EMERGENCY:
Every second counts in an emergency. All Evario one control devices feature a quick control button for setting CPR and Trendelenburg positions. Using the manual CPR lever at the head end saves even more time. The headboard and footboard can be removed within seconds to provide better access to the patient.

GOOD MANOEUVRABILITY:
Sturdy central-locking 125 or 150mm castors give Evario one its excellent handling characteristics. An optional fifth castor improves the directional stability and precise handling characteristics even further. This makes the job easier for staff and prevents expensive collision damage.

The split safety side can be released, raised and lowered effortlessly using just one hand.

Optional mounting bars and practical handle bars facilitate modern patient care from all sides.

The optional bed extension and fold-out lower leg rest extension are available to enhance the comfort of tall patients.

The lowest height position reduces the rate of any fall and significantly lowers the risk of injury.

The CPR position can also be set mechanically using an emergency lever underneath the mattress base.

The optimum individual working height can be infinitely adjusted with one of the control elements.

A low-niche design, good manoeuvrability and the option to attach the bedside cabinet to the bed facilitate manual ...

The top element of the split safety side helps the patient get out of bed.

Angle indicator is integrated in the head-end element of the 50/50 safety sides.

Brake bar at the foot end allows the bed to be braked easily also in a low position.

Fixed headboard prevents collisions with room furnishings.

Technical specifications

The following overview presents the technical data and equipment options for this model of bed. With a tailor-made configuration and visual design, and with suitable accessories, you can plan a bed that precisely matches your requirements and your interior design. Your area sales manager will be pleased to inform you about all the options.

	Evario one
Mattress base in cm (mattress dimensions)	87/90x200 cm
External dimensions in cm	99.7 x 214
Bed extension in cm	18
Safe working load in kg	250
Ground clearance of chassis in cm	15.3 - 17.3
Total weight in kg	130
Split plastic safety side
Pivoting safety side – 3/4 safety side
Protective height of pivoting 3/4 safety side	38 cm
Protective height of split safety side	39 cm
Maximum weight of patient in kg	240
Tilting to Trendelenburg position in °	15.5
Tilting to reverse-Trendelenburg position in °	15.5
Mattress base height (cover castor Ø 125 mm)	Approx. 36 – 80 cm
Mattress base height (integral castor Ø 150 mm)	Approx. 38 – 82 cm
Backrest angle in °	71
Thigh rest angle in °	32
Fowler position angle	11
Auto contour adjustment/Fowler position
Manual CPR release of the backrest
electrically adjustable

= Standard
= Optional
= Not available

	Evario one
Mattress base division in cm	76/21/32/52
Backrest length compensation in cm	4
Metal slat mattress base
Metal slatted mattress base with PP cover and slots for belt systems
4-section mattress base

= Standard
= Optional
= Not available

	Evario one
Integral castor Ø 150 mm
Cover castor Ø 125 mm
5th castor (Ø 125 mm)
Castor braking, central
Conductive castor coating: 1 castor
Conductive castor coating: 2 castors
Conductive castor coating: 4 castors
5 castors, (conductive castor coating)
4 wall deflection rollers, plastic, all sides
Brake pedal: 2 x plastic with coloured marking
Brake pedal: 2 x plastic with coloured marking, 2 x metal
Directional castor position: head end, right
Directional castor position: head end, left
Directional castor position: foot end, left
Directional castor position: foot end, right
Directional castor position: Centre of bed (5th castor)

= Standard
= Optional
= Not available

	Evario one
Head and footboard design Intercontinental
Crystal white paint colour
Azure decor (0744-60)
Baltic Sea decor (0475-60)
Gold decor (0446-60)
Silver Grey decor (0160-60)
Snow White decor (9417-60)
Storm decor (10542-60)
Headboard and footboard completely removable
Manual reprocessing, IPx4

= Standard
= Optional
= Not available

	Evario one
Integrated “control panel light” version
Integrated “control panel light” version + handset with locking function
Handset with locking function
Nurse control S in the linen holder
Nurse control M in the linen holder
Height adjustment foot switch
Lead-gel battery
Under bed light
Brake signal
5th castor
Side accessory rail
Linen holder
Lower leg rest extension
Bed extension
2 sleeves for round tubular patient lifting pole
Angle indicator
2 infusion stand adapter sleeves each (at head and foot end)

= Standard
= Optional
= Not available
