Low-height beds with digital assistance

Elvido

The current generation of our Elvido care bed series strives with every detail to relieve the burden on care staff and to improve the quality of life for residents. The focus is on digital innovations such as the new Out-of-Bed systems and a modular design that transforms each individual bed into a customised bed of choice.
In the Elvido family, you can also find heavy-duty beds, mechanical beds and particularly mobile models that can be used in any ward, including even psychiatric units, with the most stringent requirements.

Model facts

Safe working load at least 225 kg
Combined split safety side for getting in and out of bed unimpeded
Standard handset with illumination at night
Digitisation with simple operation and high benefit

Model variants

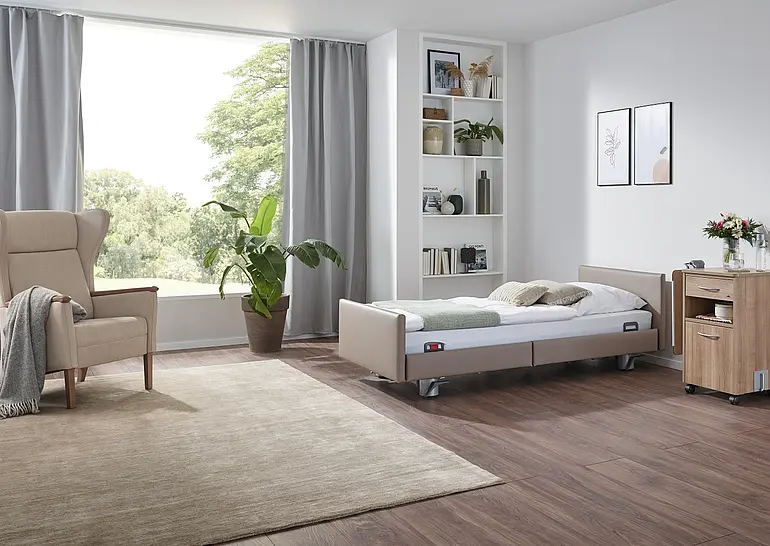

The low-height bed

Elvido vervo

Height adjustment range approx. 25 – 80 cm
Fall prevention without DoLS
OpenBus technology enables optional Out-of-Bed system

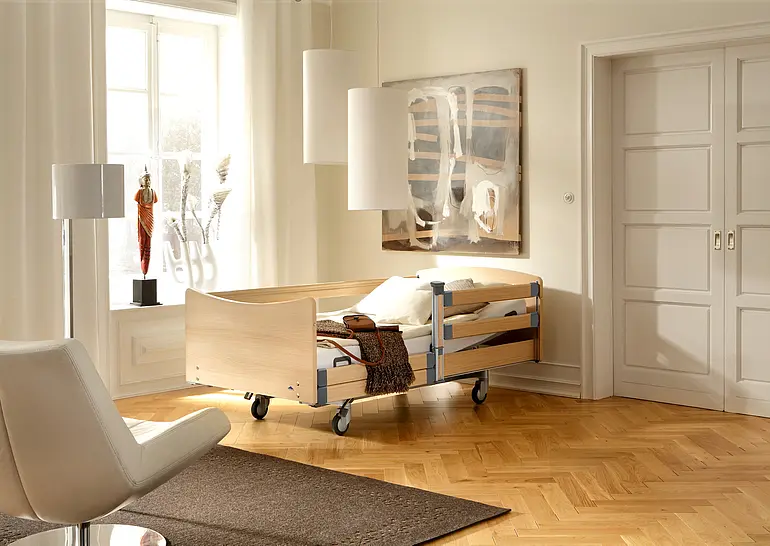

The heavy-duty bed

Elvido forto

Safe working load 260 kg
Mattress base width 100 cm
Stable 125 mm double castors

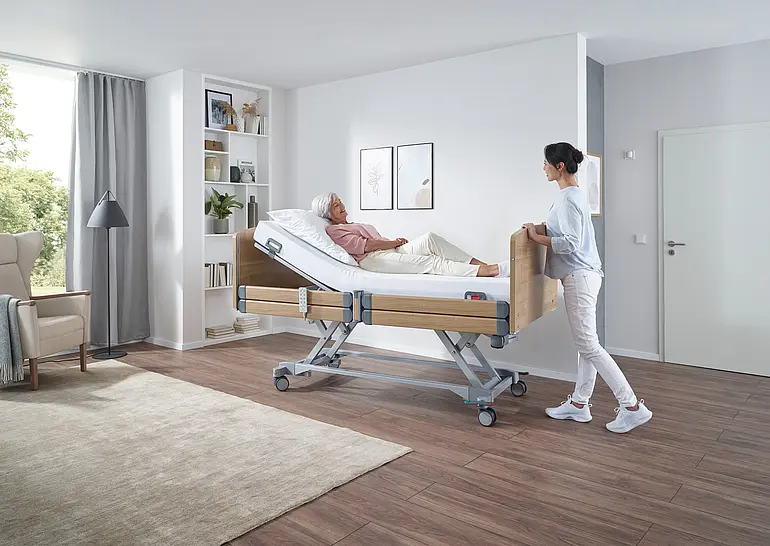

The mobile care bed

Elvido movo

Large 100 mm double castors for easy movement
Easy to manoeuvre in confined spaces
Height adjustment range approx. 28 – 83 cm

The mechanical bed

Elvido rega

Dispenses with cables and toolless removable parts
Meets the high safety requirements for use in psychiatric care
Height adjustment range approx. 39 - 81 cm by pump pedal

All additional information at a glance

We are pleased to provide our informational materials for you to download.

Opuscolo letto Elvido Serie (italiano)
pdf, 5 MB

Brochure care bed Elvido range (english)
pdf, 5 MB

By loading the video, you accept YouTube's privacy policy.

The advantages for you

VARIO SAFE - The best system for adjustable care beds.

ERGONOMIC - Intuitive operation, easy manoeuvrability and an ergonomic working height combine to support carers.

OUT-OF-BED - Two variants to choose from to ensure quick assistance of fall-prone residents. The permanently fixed system OOB Smart and the mobile system OOB Flex.

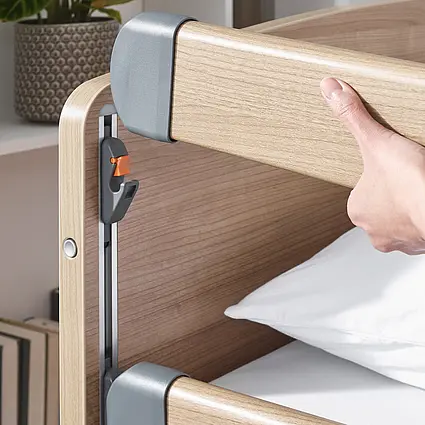

EASY CLICK - The new generation of the Elvido series comes with the intelligent Easy Click system as standard, for both safety sides. The safety side bars can be “clicked” onto pre-assembled brackets without the use of tools. This makes it easy to assemble and clean the bed. The

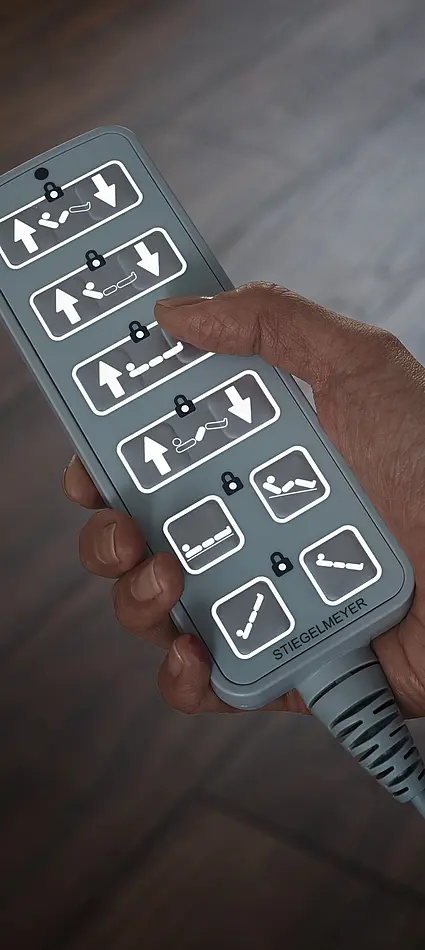

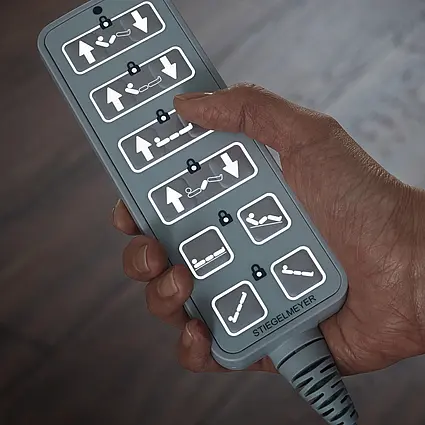

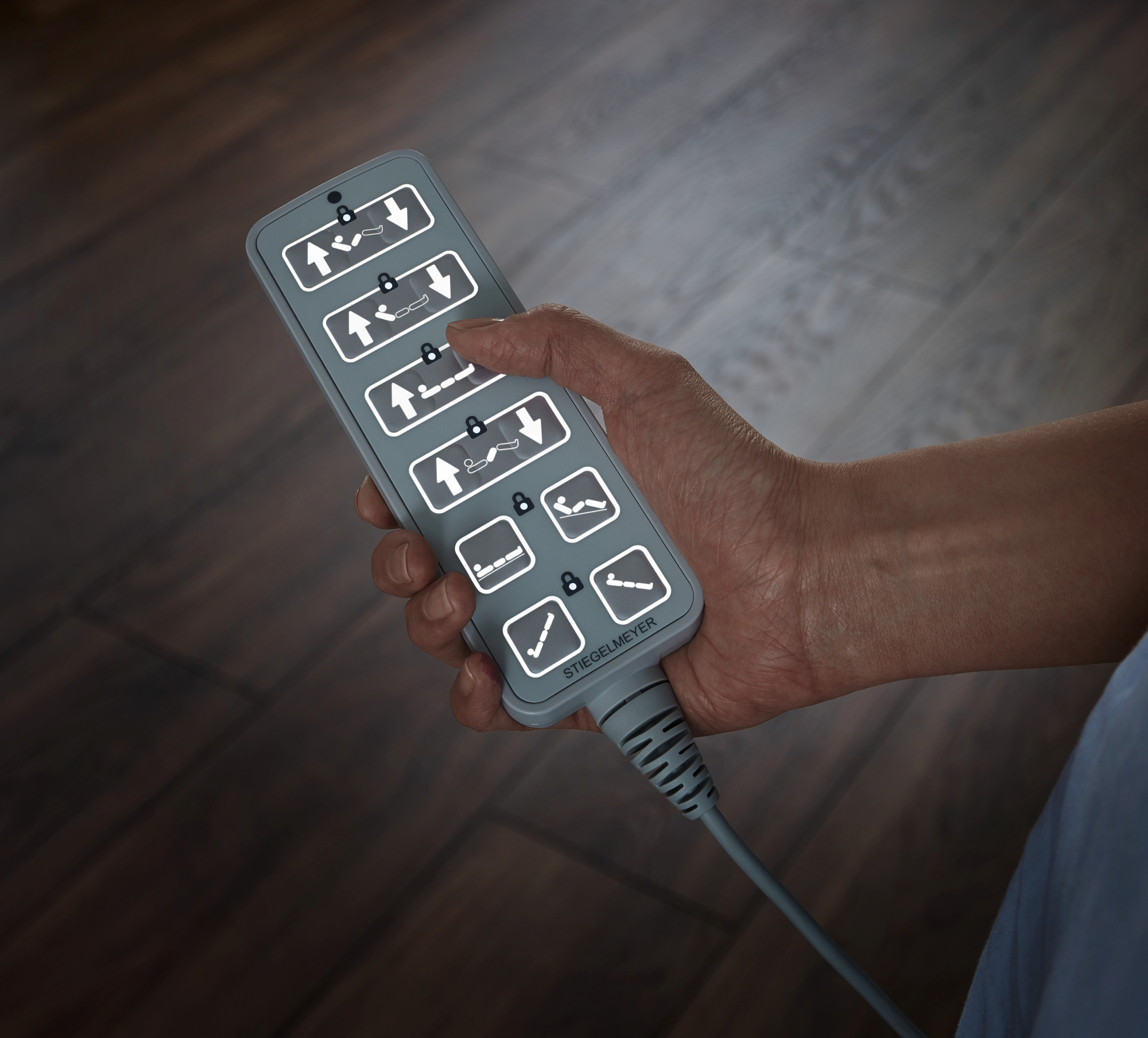

Illuminated hand control — The illuminated hand control ensures easy operation even in the dark.

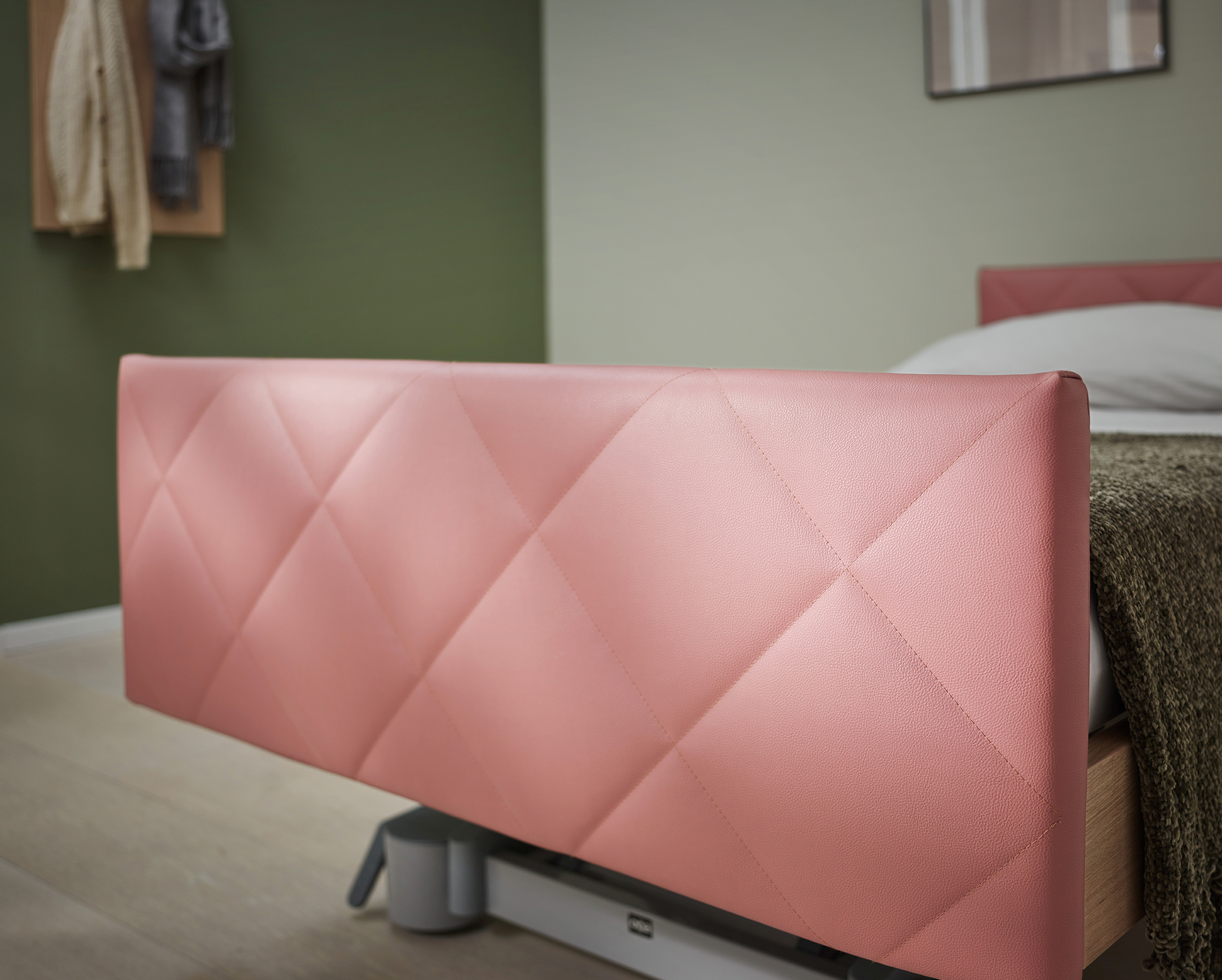

Quilting in fabric or imitation leather on the head and foot sections — With a quilting of fabric or imitation leather, the head and foot sections can be made even more homely.

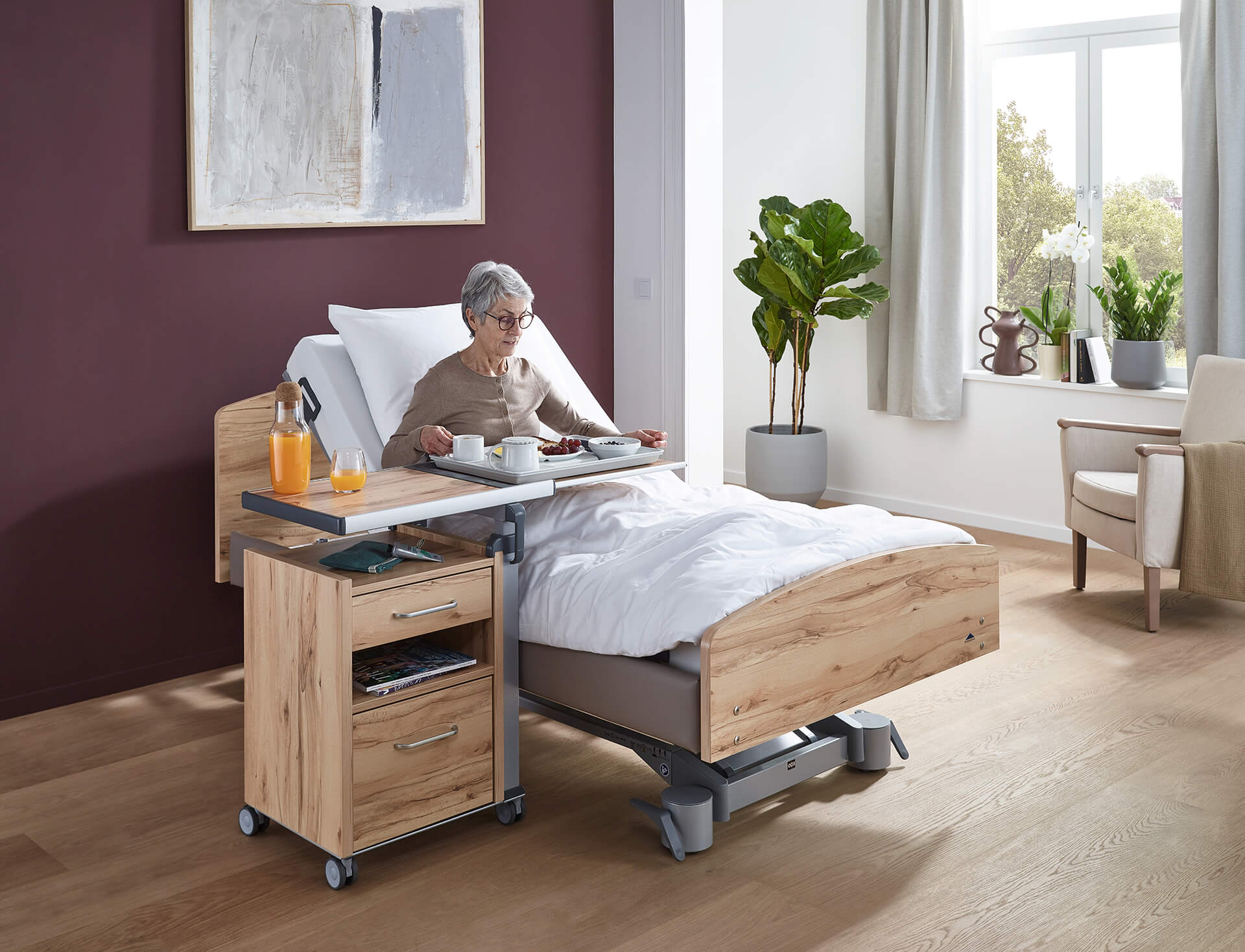

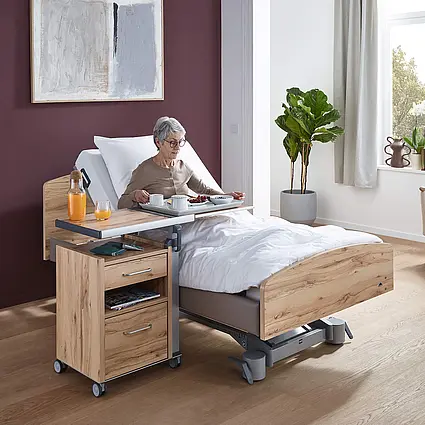

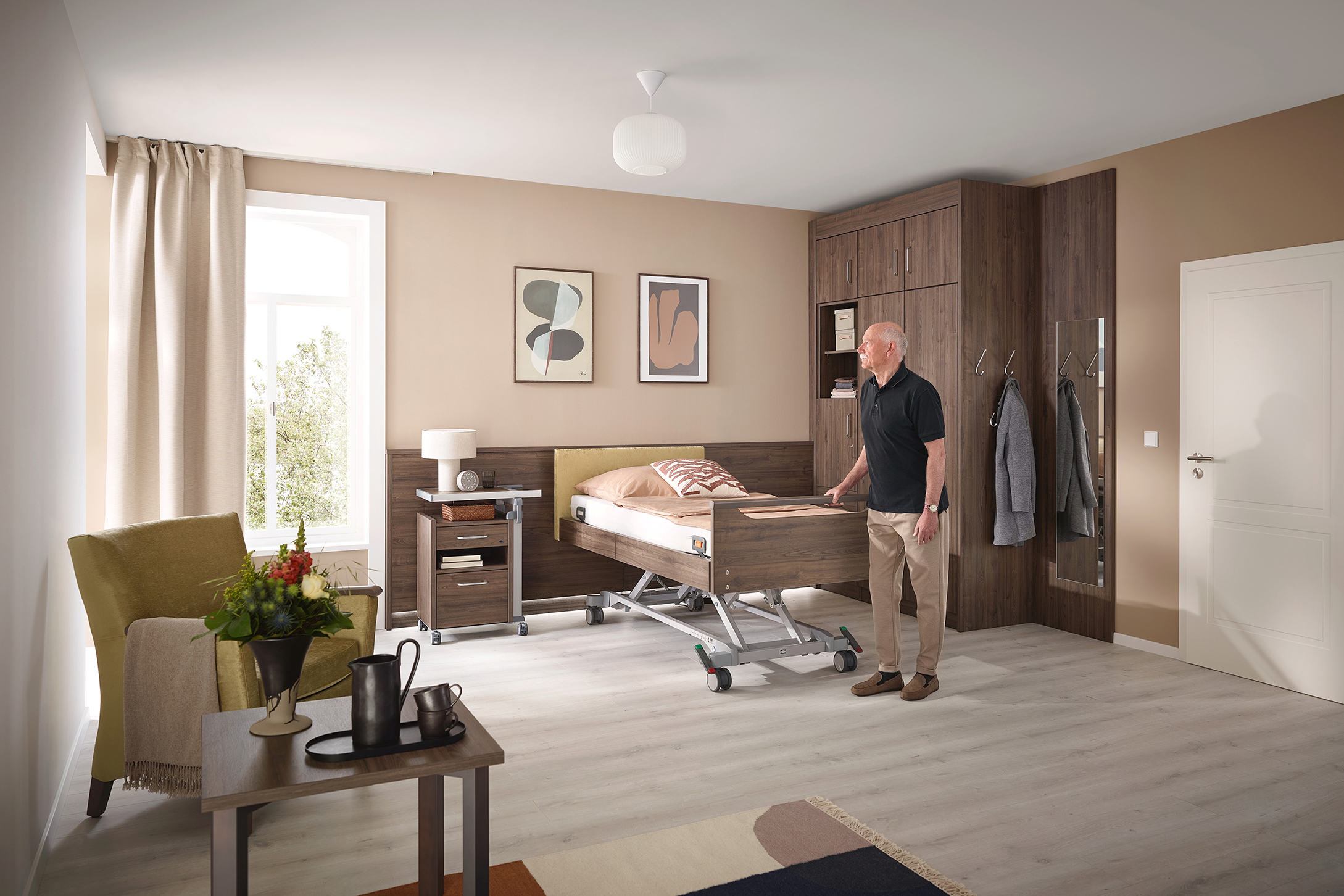

Our beds visually fit into any living environment.

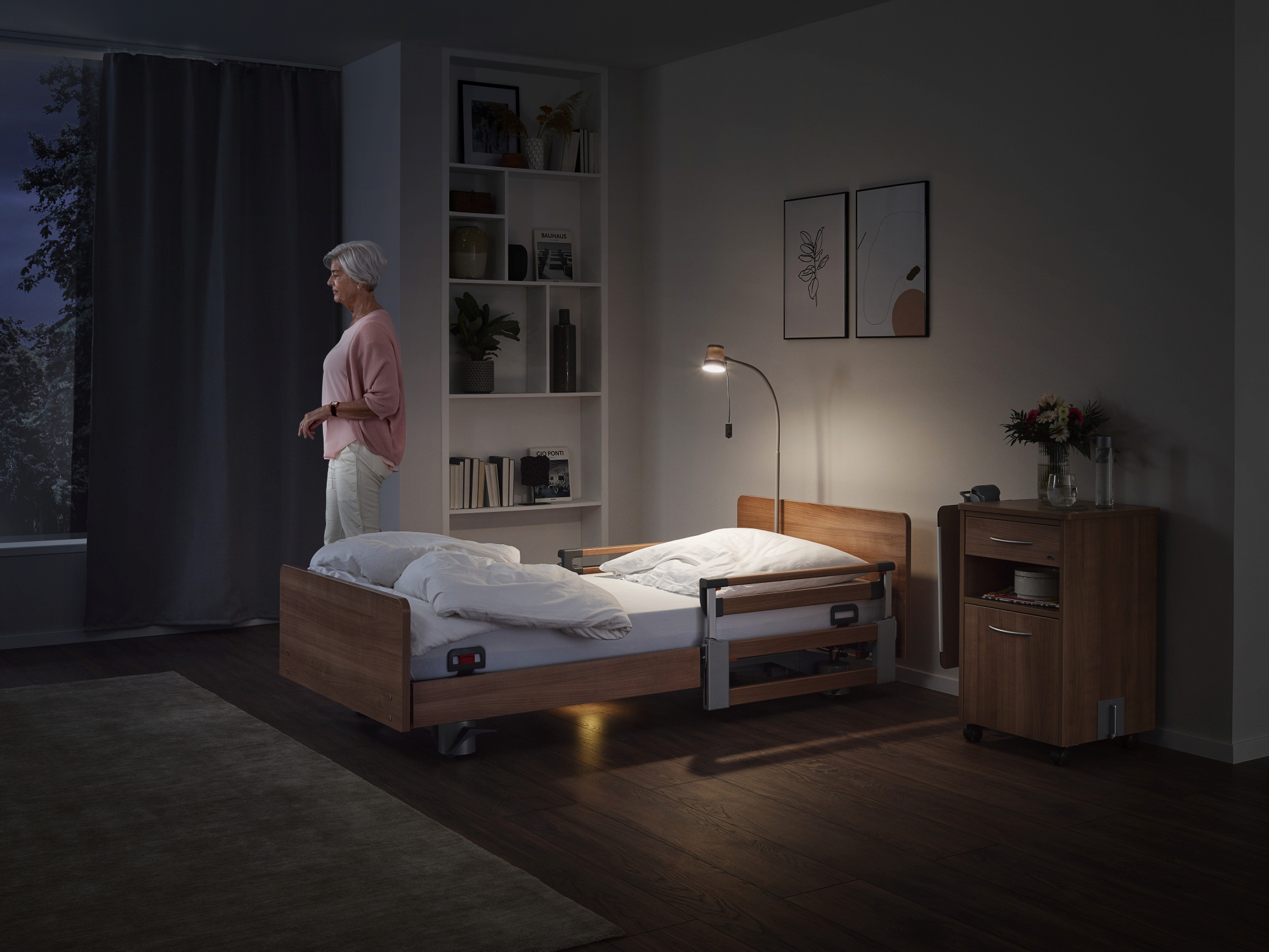

There are two out-of-bed systems to choose from: the permanently installed OOB Smart and the mobile OOB Flex.

The OOB Flex uses a sensor bar on the bed surface and can also be retrofitted to existing beds.

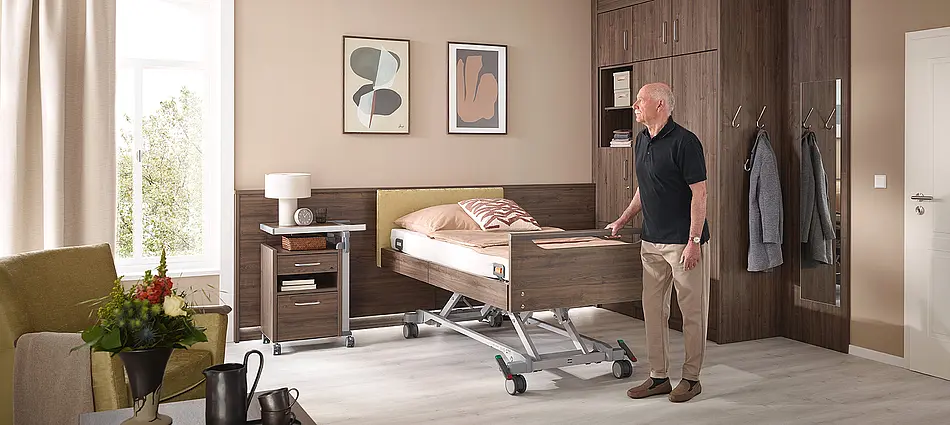

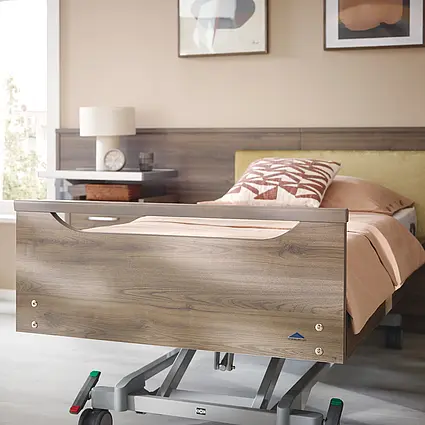

A variety of homely headboards and footboards are available for the Elvido series, with and without handle strips.

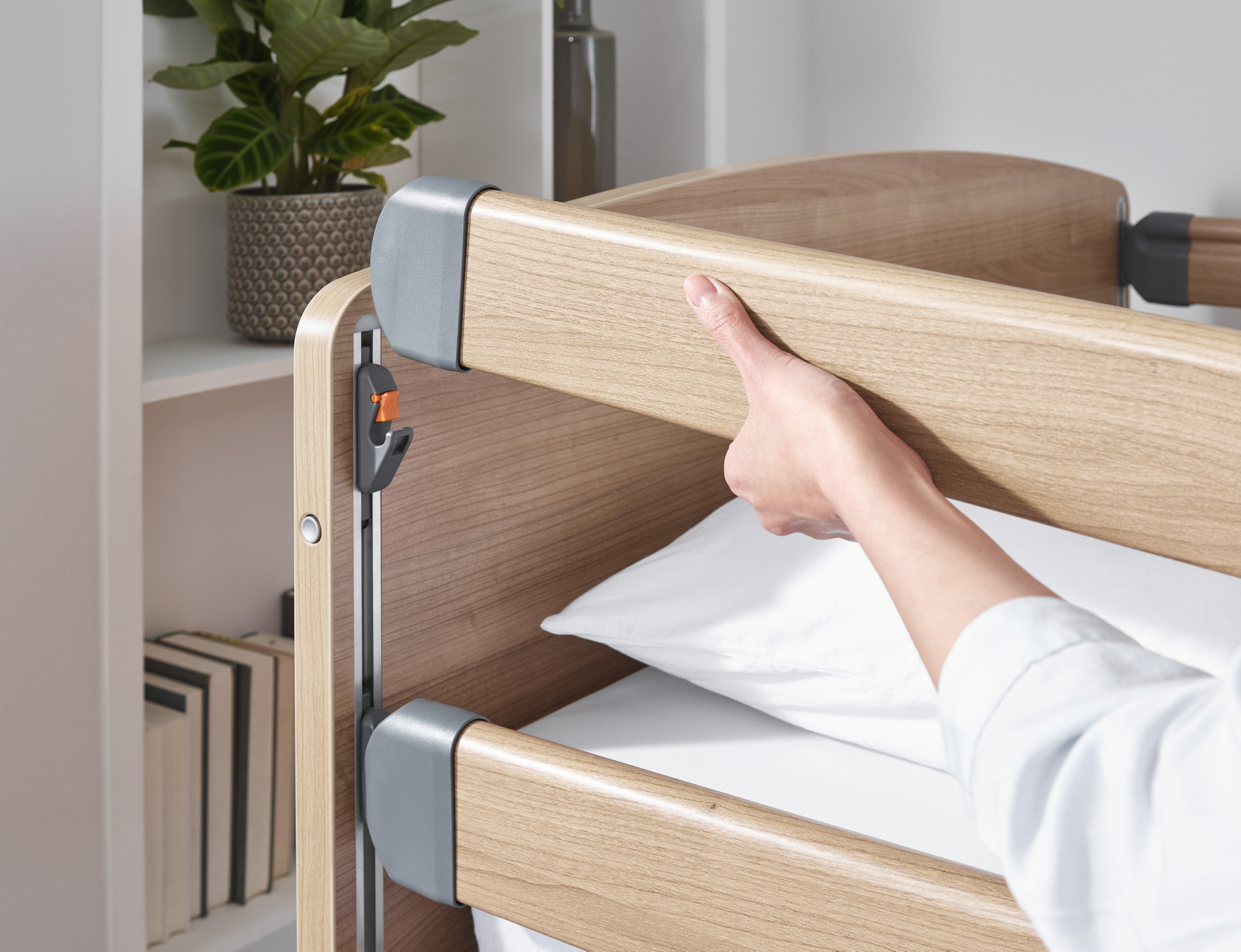

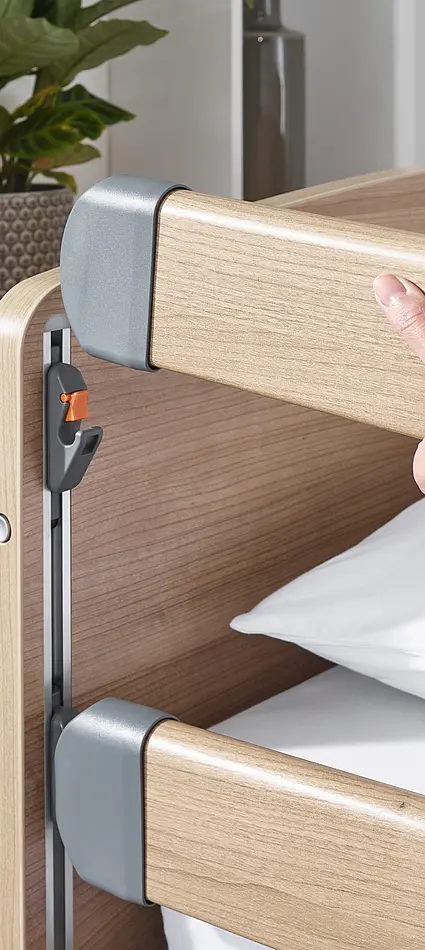

Easy Click allows the tie bars to be attached to and removed from the preassembled bracket without the need for tools.

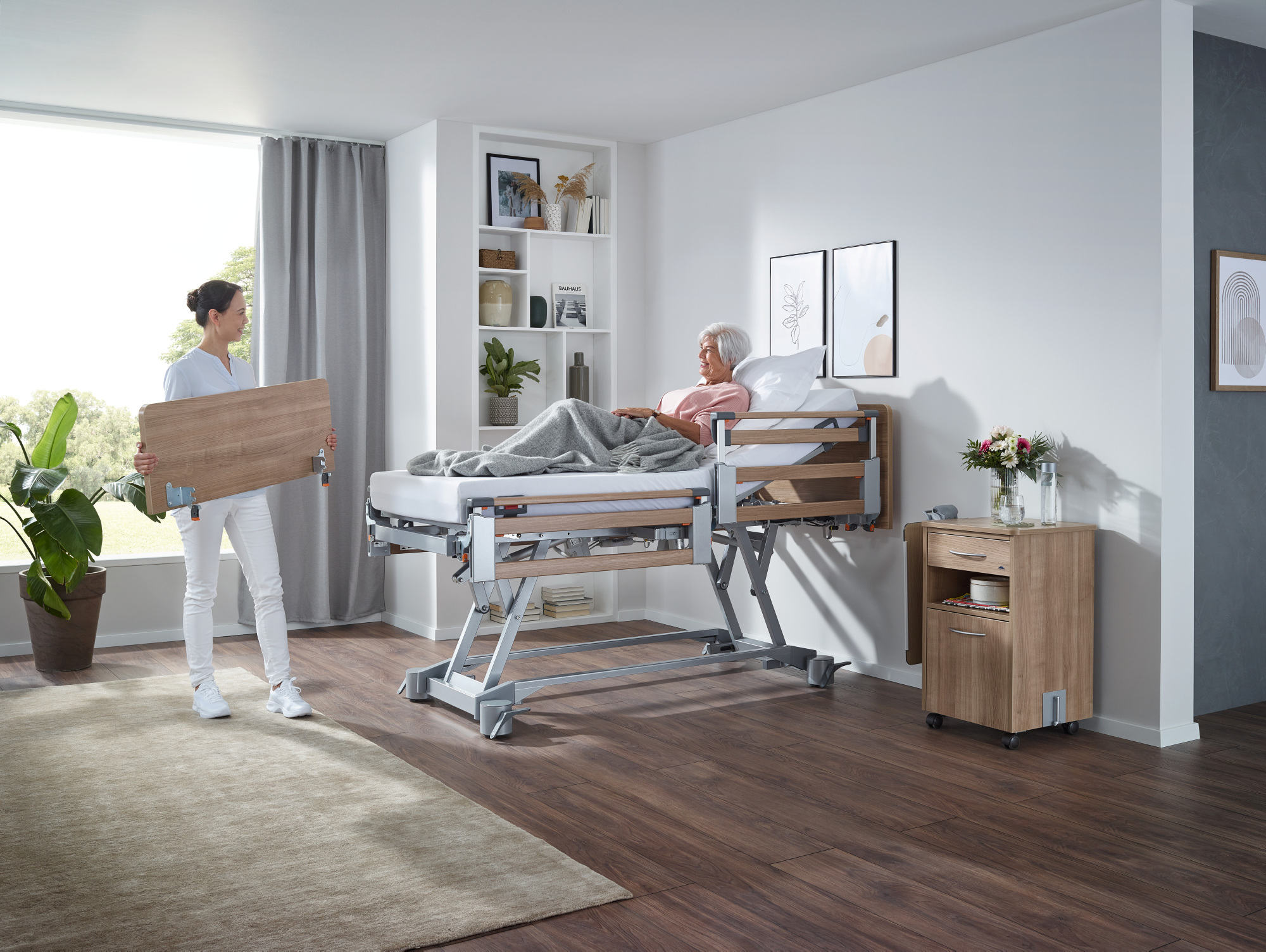

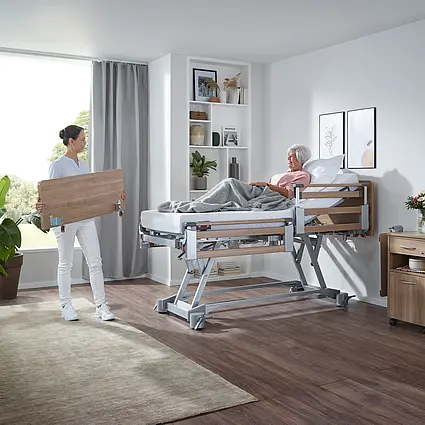

You can remove or replace head and foot sections at any time without tools using the Vario-Safe system.

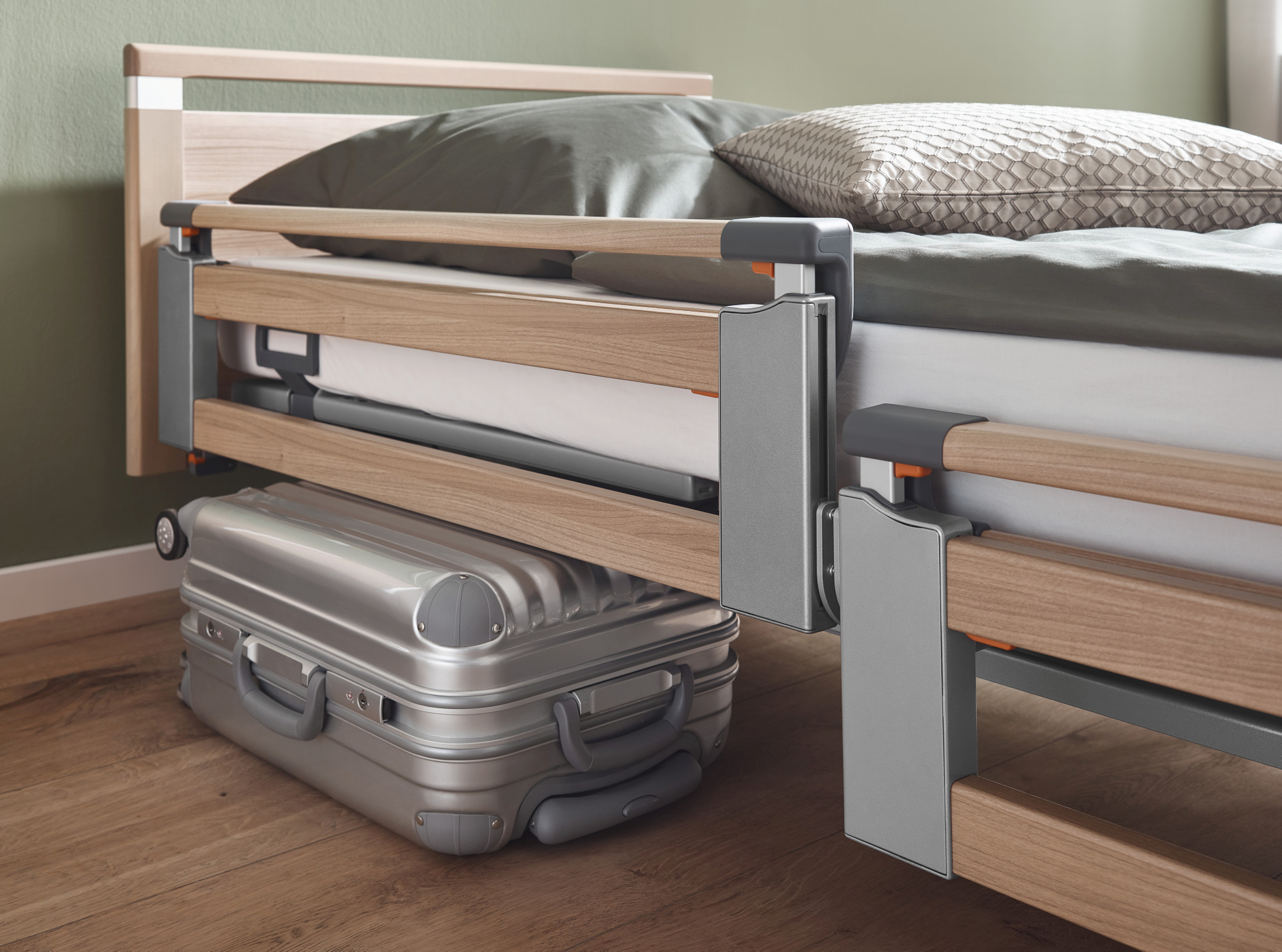

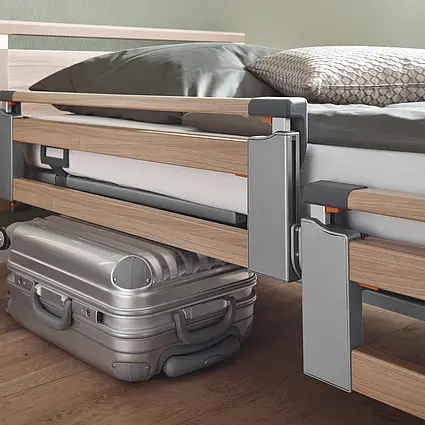

If an object blocks the height adjustment of the bed, the side guard remains in position to prevent damage.

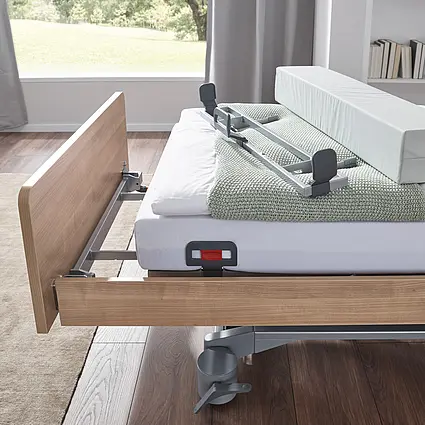

Bed extension 30 cm standard — Thanks to the standard bed extension, you can always extend the bed frame by 20 cm.

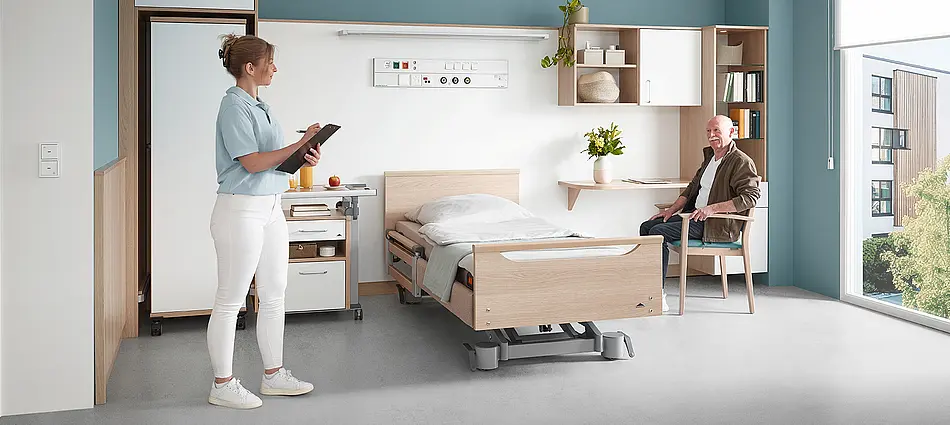

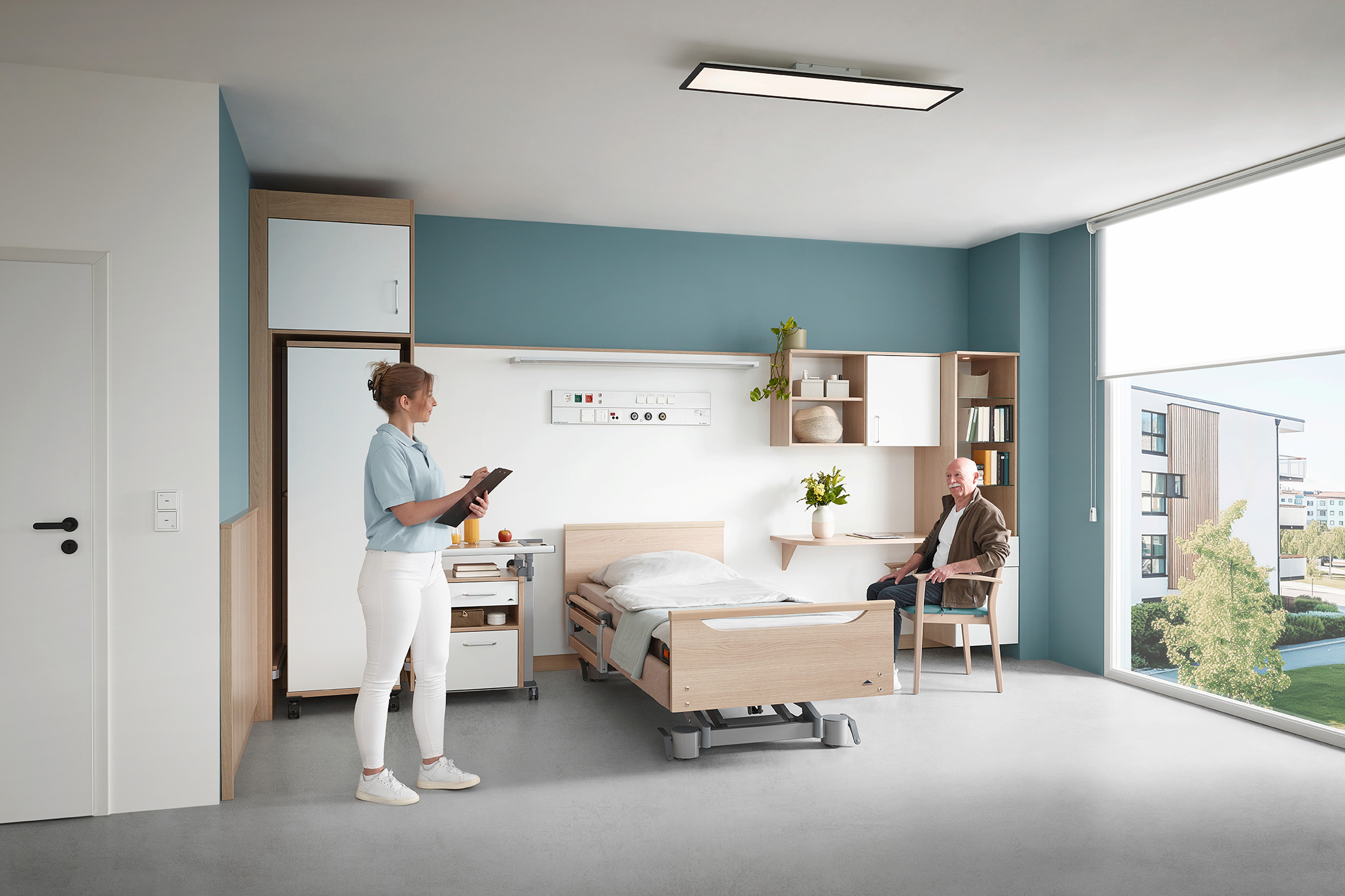

The Elvido - customized contract furniture and cabinets — The Elvido and our customized contract furniture and cabinets form a harmonious combination.

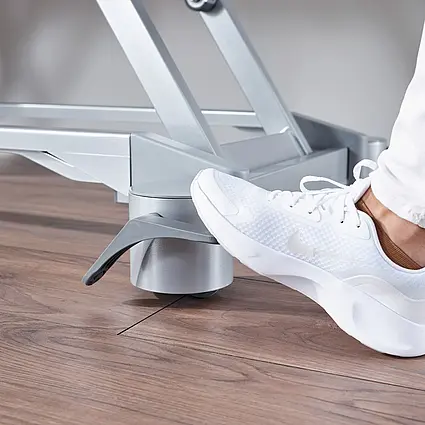

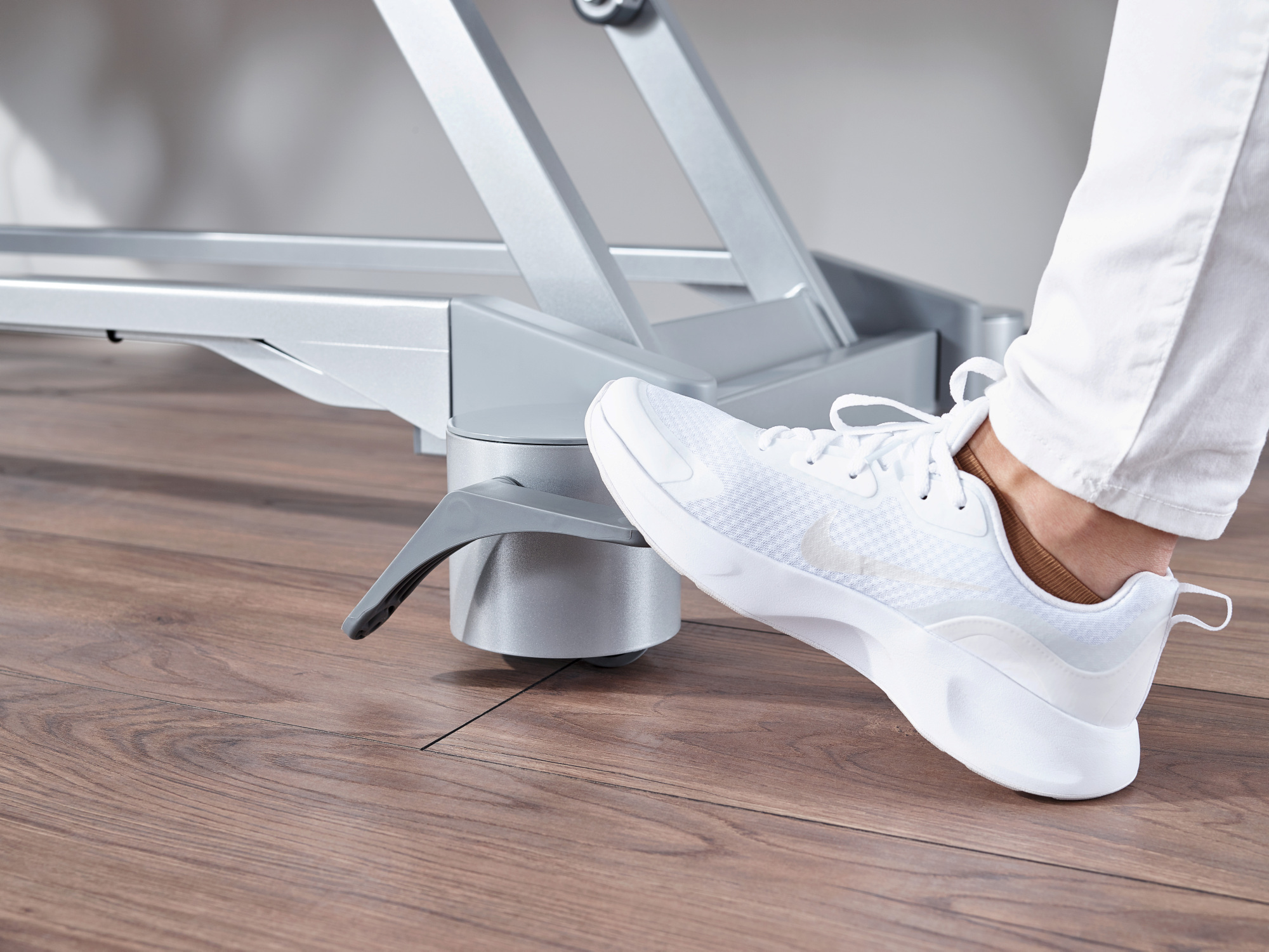

The easy operability of the brakes ensures optimum safety.

Technical specifications

The following overview presents the technical data and equipment options for this model of bed. With a tailor-made configuration and visual design, and with suitable accessories, you can plan a bed that precisely matches your facility’s requirements and interior design. Your area sales manager will be happy to inform you about all the possibilities.

	Elvido vervo	Elvido forto	Elvido movo	Elvido rega
Mattress base in cm (mattress dimensions) in cm	90 x 200, 100 x 200	100 x 200	90 x 200, 100 x 200	90 x 200
External dimensions in cm	103 x 210, 113 x 210	113 x 210	103 x 210, 113 x 210	103 x 212
Bed extension in cm	20, 10	20, 10		20, 10
Ground clearance in cm ca.	15	15	15	15
Safe working load in kg	225	260	225	225
Total weight in kg	140	150	140	130
Maximum weight of patient in kg ca.	185 - 210	185 - 210	185 - 210	185 - 215
Tilting to Trendelenburg position in °	12	12	12	8
Tilting to reverse-Trendelenburg position in °	12	12	12	15
Mattress base height in cm (from - to)	25 - 80	31 - 85	28 - 83	39 - 80
Backrest angle in °	70	70	70	70
Thigh rest angle in ° ca.	40	40	40	30
Auto contour adjustment / Fowler position
Manual CPR release of the backrest
Electrically adjustable
Mechanically adjustable
24-volt drive concept with external transformer
Integrated bed extension
Bed extension for bolting on

* = Not available in all colors
= Standard
= Optional
= Not available

	Elvido vervo	Elvido forto	Elvido movo	Elvido rega
Mattress base division in cm	85/15/40/60	85/15/40/60	85/15/40/60	71/15/41/61
Backrest length compensation	10	10	10
Comfort mattress base
PP hygiene mattress base
PP hygiene mattress base for belt system
Wire mesh base (removable)
4-section mattress base
Mattress base tiltable to reverse-Trendelenburg position
Mattress base tiltable to Trendelenburg position

* = Not available in all colors
= Standard
= Optional
= Not available

	Elvido vervo	Elvido forto	Elvido movo	Elvido rega
Protective height of safety sides	41	41	41	38
Full-length safety side attachable
Split safety side – combinable
No safety side
split safety side – combinable – Vario-Safe-System

* = Not available in all colors
= Standard
= Optional
= Not available

	Elvido vervo	Elvido forto	Elvido movo	Elvido rega
Double castor Ø 50 mm
Double castor Ø 100 mm
Cover castor Ø 125 mm
4 central locking castors
2x2 locking castors

* = Not available in all colors
= Standard
= Optional
= Not available

	Elvido vervo	Elvido forto	Elvido movo	Elvido rega
Argentum paint colour
Bella Noce Choco decor (R 30019 VV)
Beech Crenata decor (R 24096 VV)
Natural Beech decor (R 24010 VV)
Style Oak Cinnamon decor (R 20100 VV)
Precious Cherry decor (R 42002 VV)
Havana Cherry decor (R 42006 VV)
Royal Maple decor (R 27001 VV)
Chalk decor (U 11102 VV)
Lindberg Oak decor (R 20021 VV)
Magnolia decor (U 11509 VV)
Truffle Baron Elm decor (R 37003 VV)
Alero
Camo
Lito
Lito reha
Nobla
Nobla reha
Nobla mala
Pino
Podego
Prinzino
Solvo
Primus
Primus low
