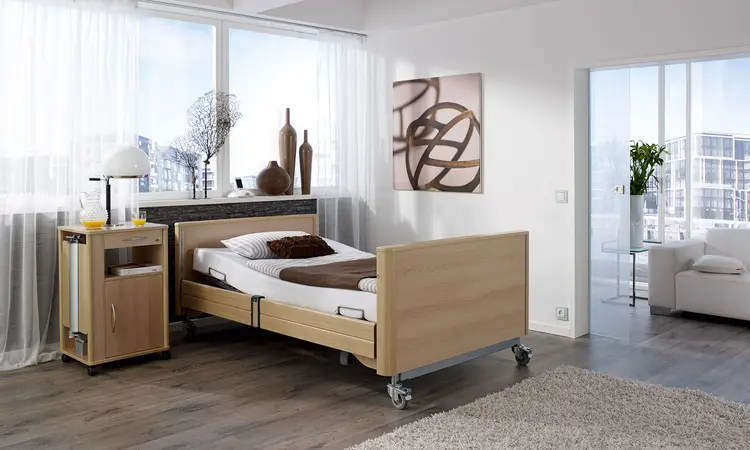

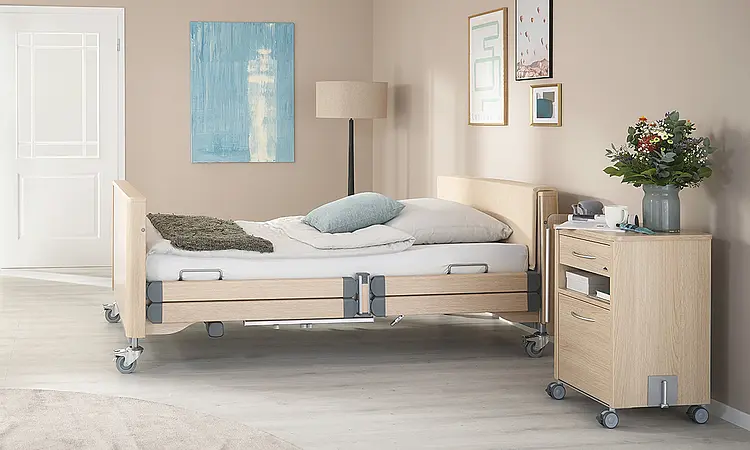

Arena

The heavy-duty bed

People have been growing taller and heavier on average for decades now. With the Arena heavy-duty bed, care facilities are prepared for even the most stringent requirements. This bed is also suitable for obese patients in a hospital setting.



Model facts

  • Safe working load 350 kg
  • Mattress base width 120 cm
  • Height adjustment range approx. 40 – 80 cm
  • Optional combinable split safety side

Advantages for you

Combinable safety side

Preserving mobility

  • Option of split safety side, combinable with full-length safety side
  • Allows the occupant to get in and out of bed unobstructed
  • Mobilisation support post aids entry and exit

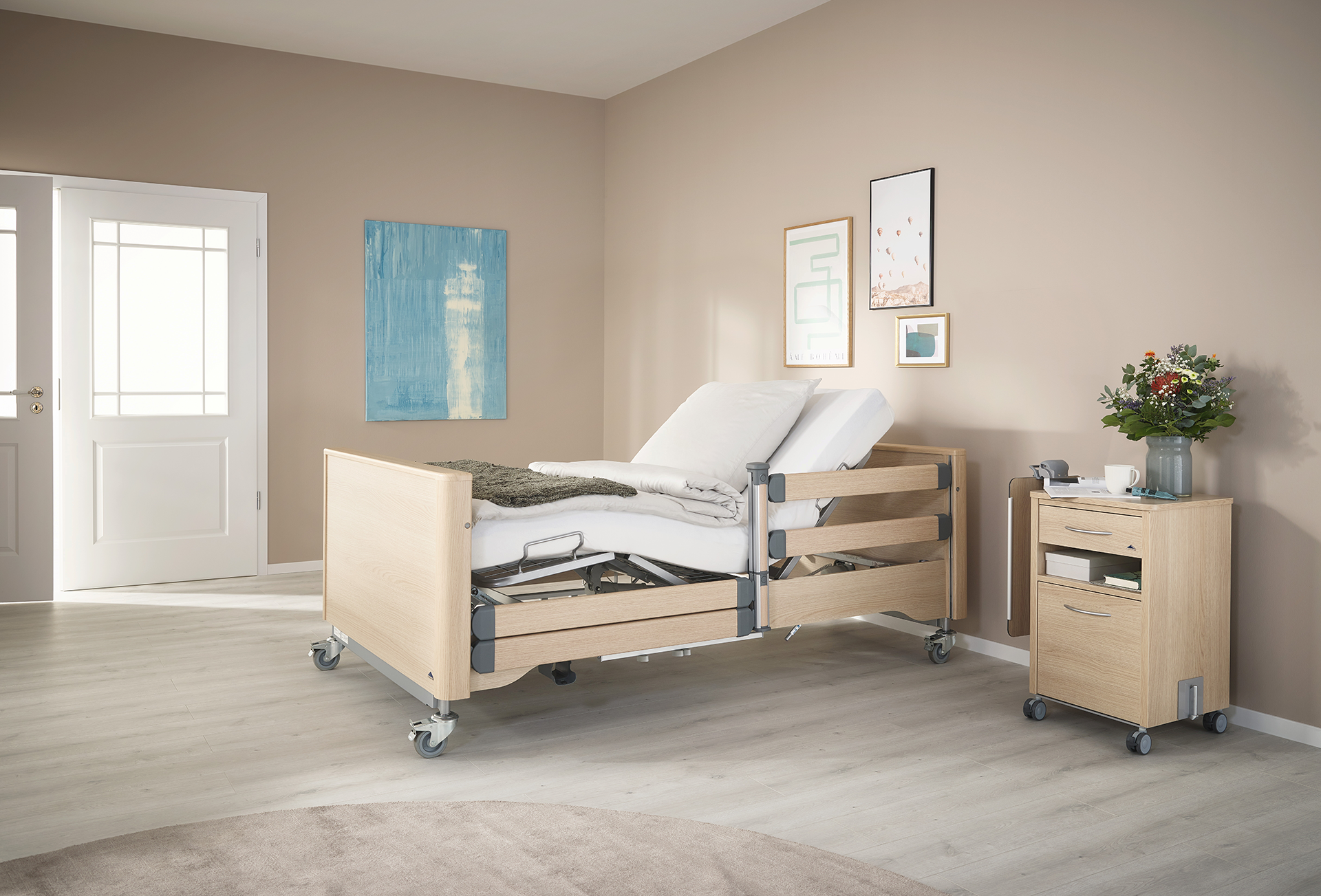

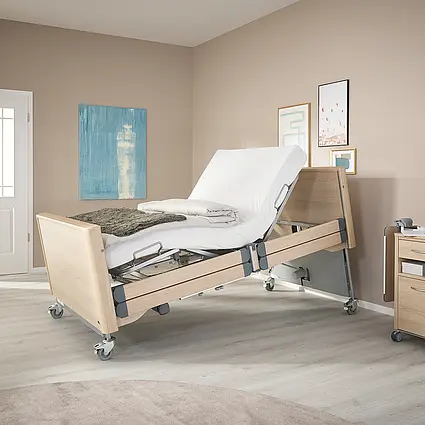

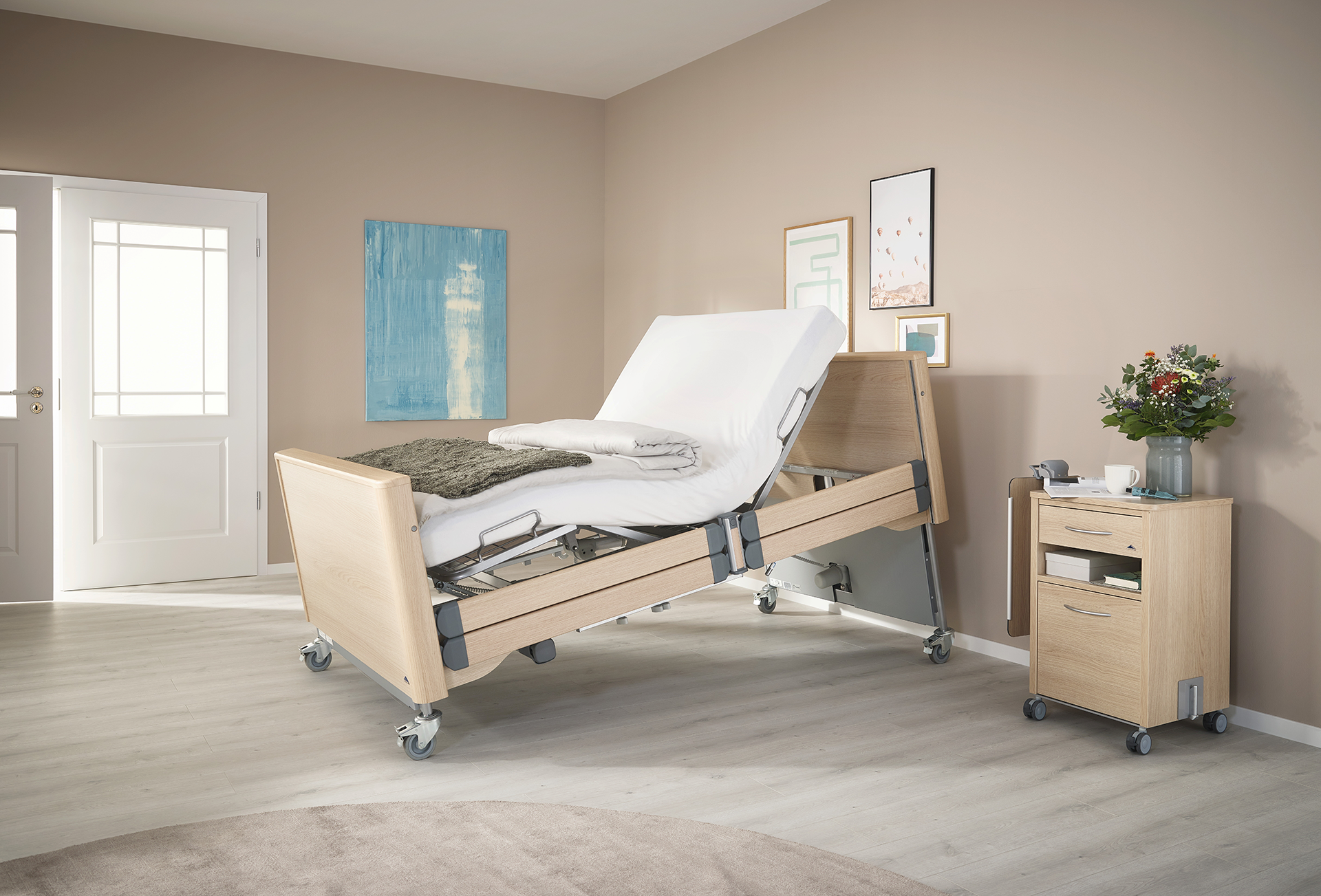

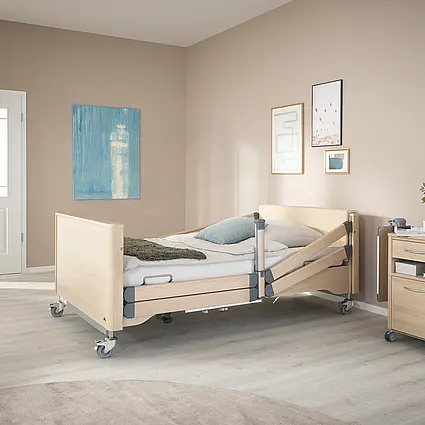

Sitting position

Makes breathing easier

  • Comfortable sitting position due to combination of reverse-Trendelenburg position and raised backrest and thigh rest
  • Relieves pressure on the lung
  • Reduced risk of aspiration
Technical specifications
Technical specificationsContact
ContactDownloads
Downloads

The advantages for you

MOBILITY - The optional split safety side includes a middle post with an ergonomically shaped knob. Residents and patients can stand up unimpeded and support themselves.

ERGONOMIC - The mattress base is adjustable from 40 to 80 cm and always offers carers a back-friendly working height.

ACCESSORIES - The Arena can be combined with accessories to create a tailor-made bed. The use of the bed extension is recommended for tall residents.

Supply rail on the Arena heavy-duty bed
The Arena heavy-duty bed is suitable for virtually every resident, with its safe working load of 350 kg.

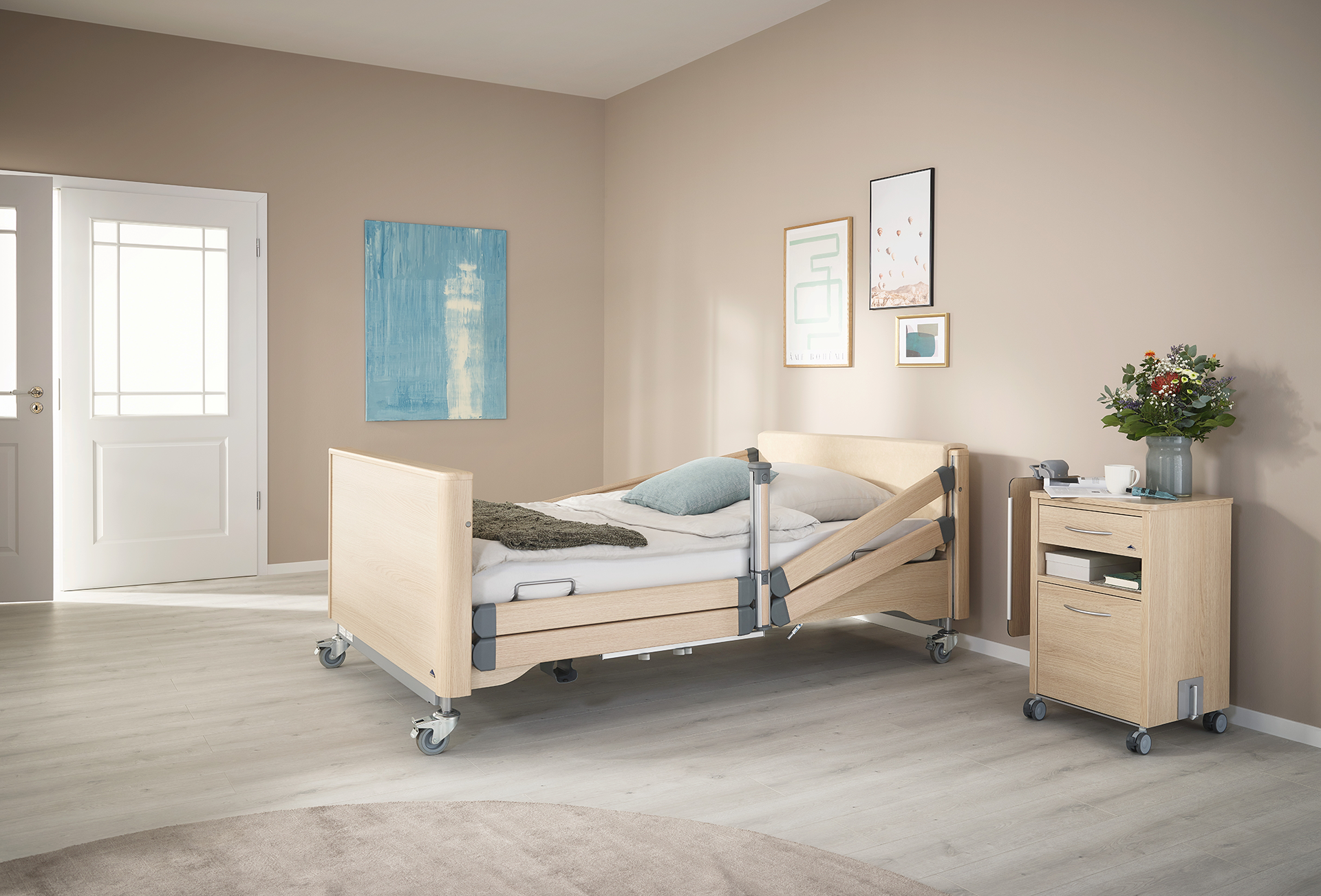

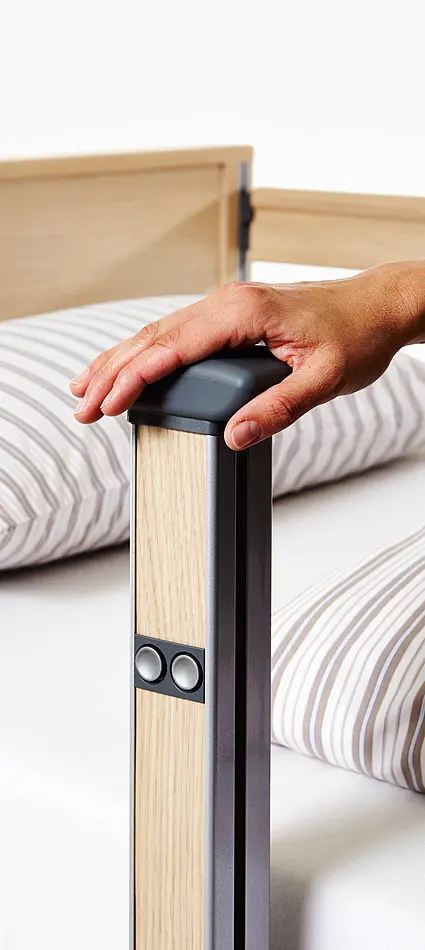

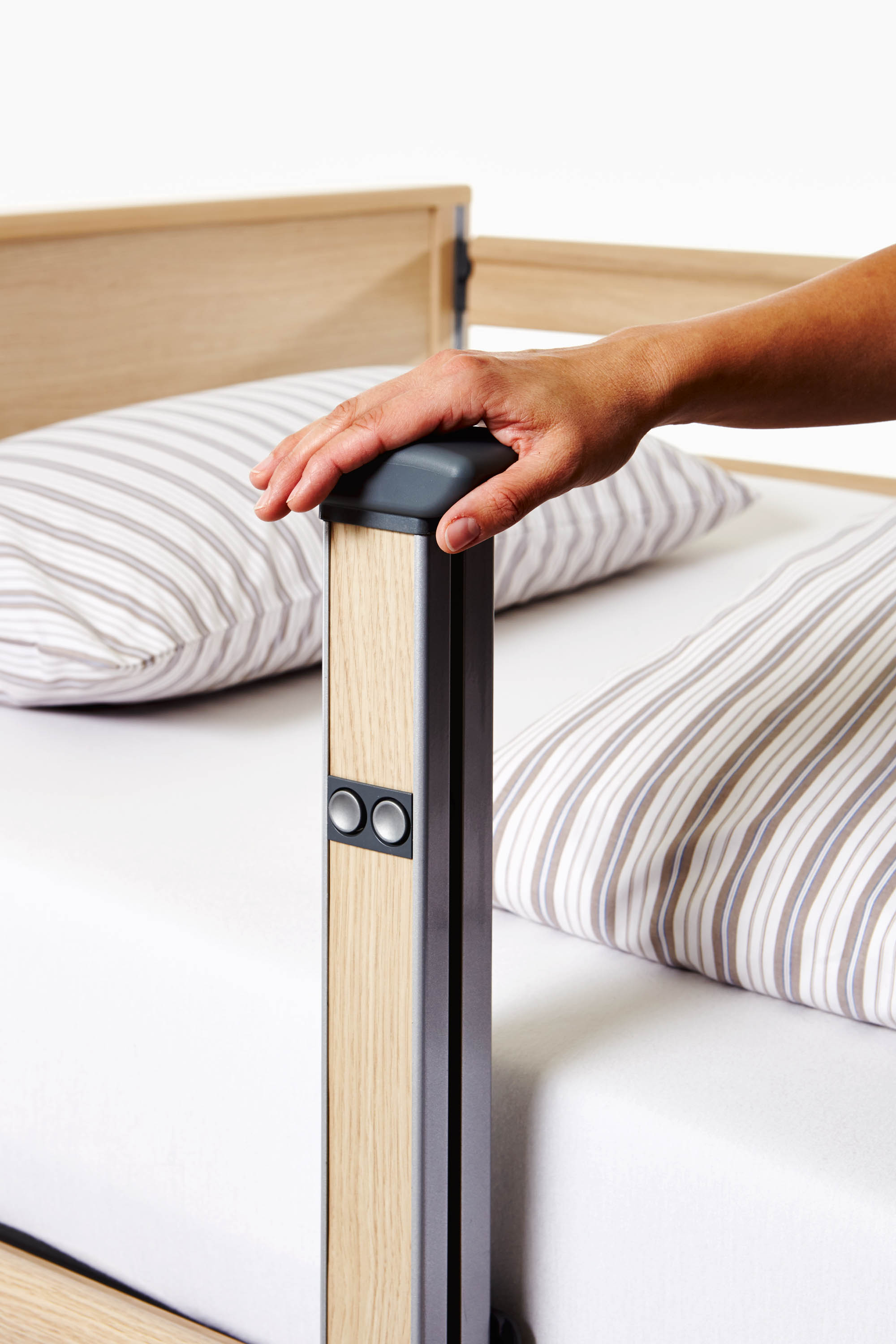

Split safety side mobilisation aid of the Arena heavy-duty bed
The centre support of the split safety side also serves as a practical mobilisation aid.

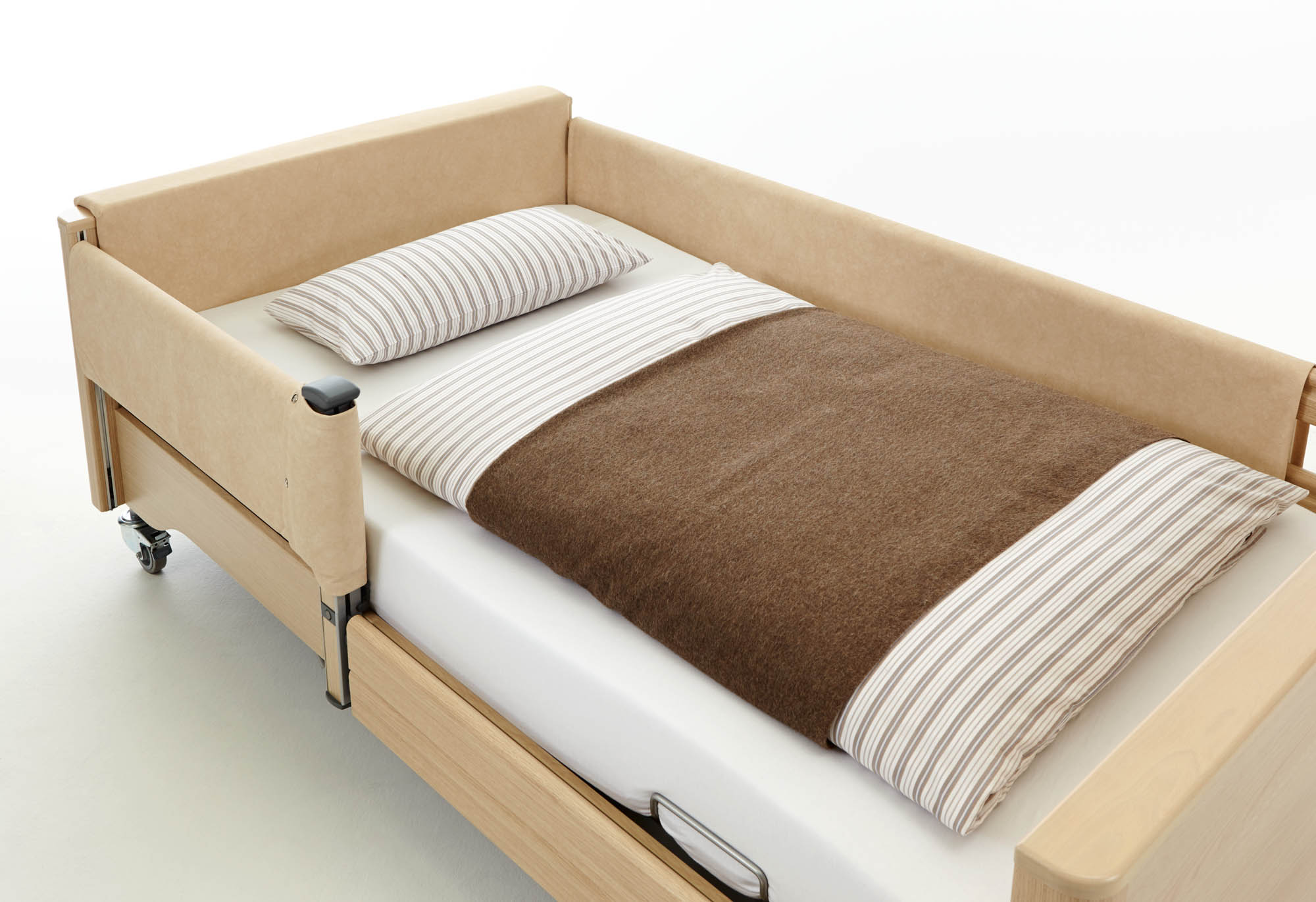

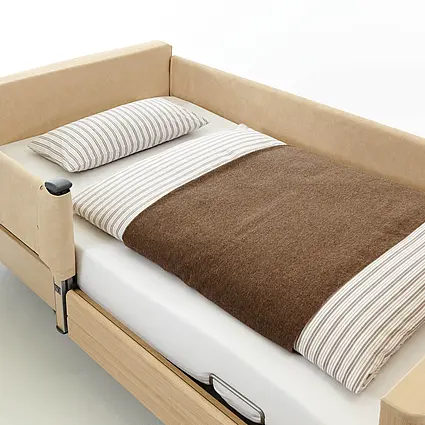

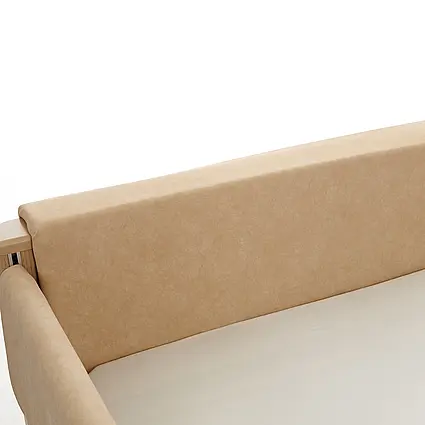

Foam leather covers for the safety side of the Arena heavy-duty bed
Protective foam leather padding covers are available to choose from for the Arena’s full-length and split safety side.

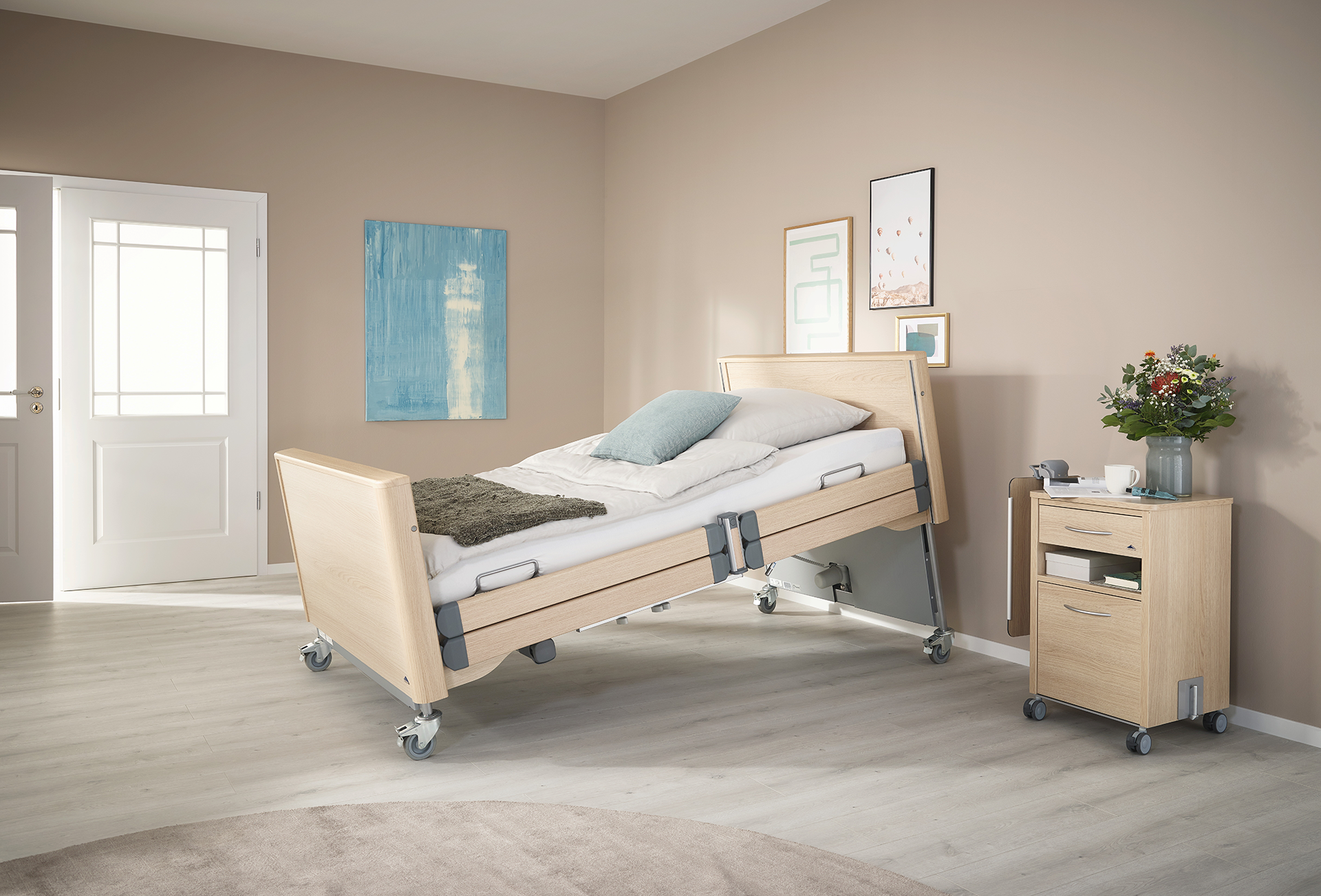

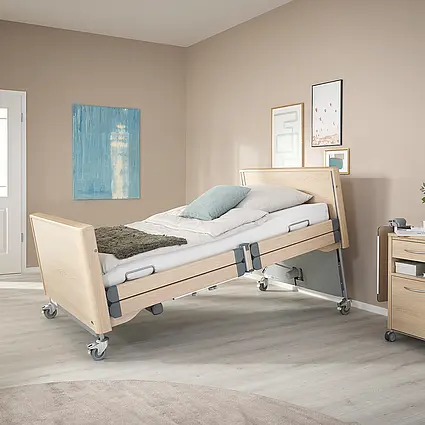

Trendelenburg position for residents in the Arena heavy-duty bed
The carer can adjust the Arena heavy-duty bed to the Trendelenburg position if required.
Manual CPR release on the Arena heavy-duty bed
The CPR release facility allows care staff to lower the backrest from any position.

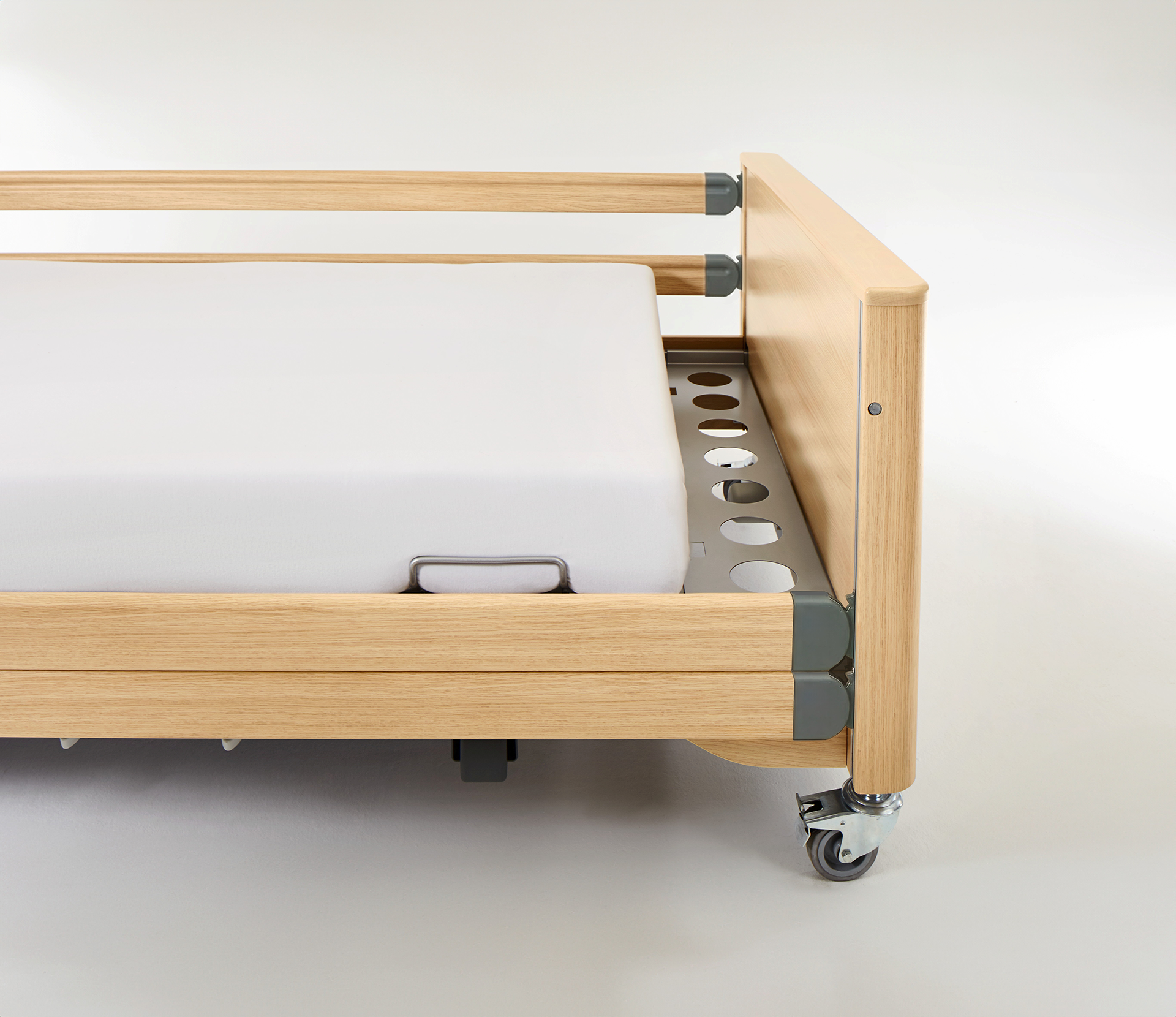

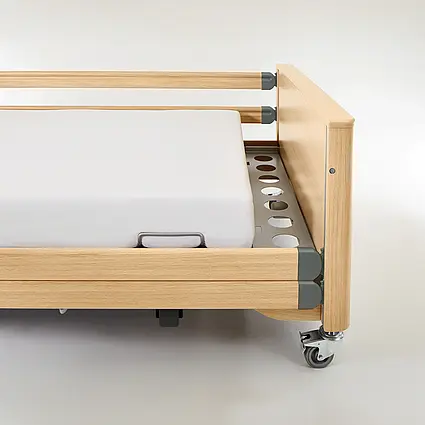

Bed extension on the Arena heavy-duty bed
The Arena heavy-duty bed can be fitted with a bed extension for taller residents on request.

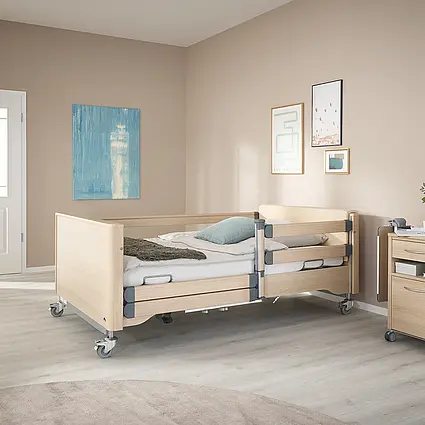

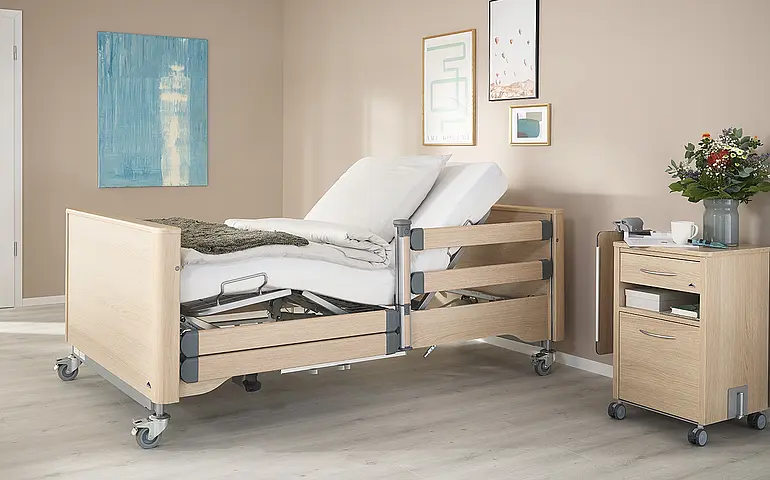

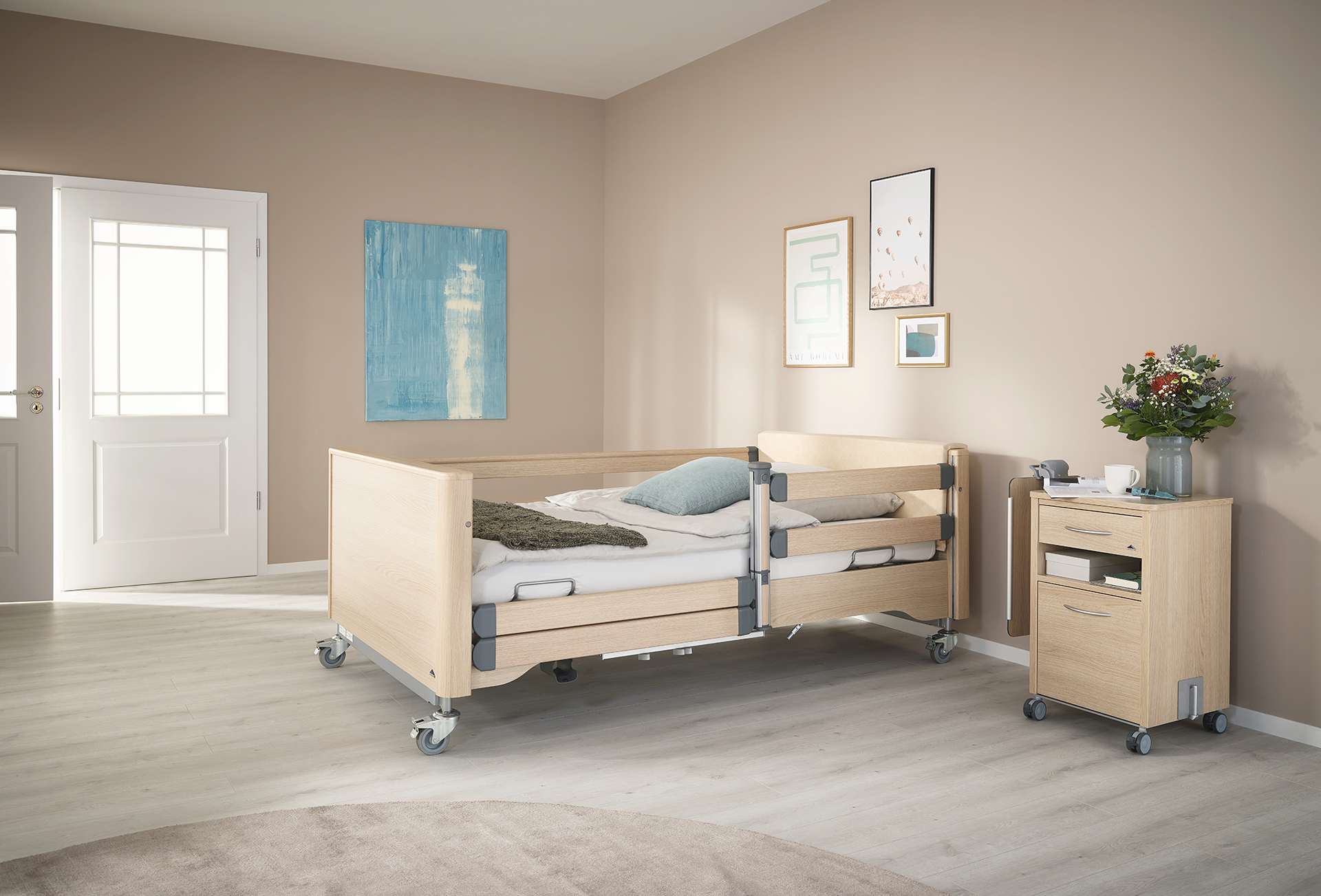

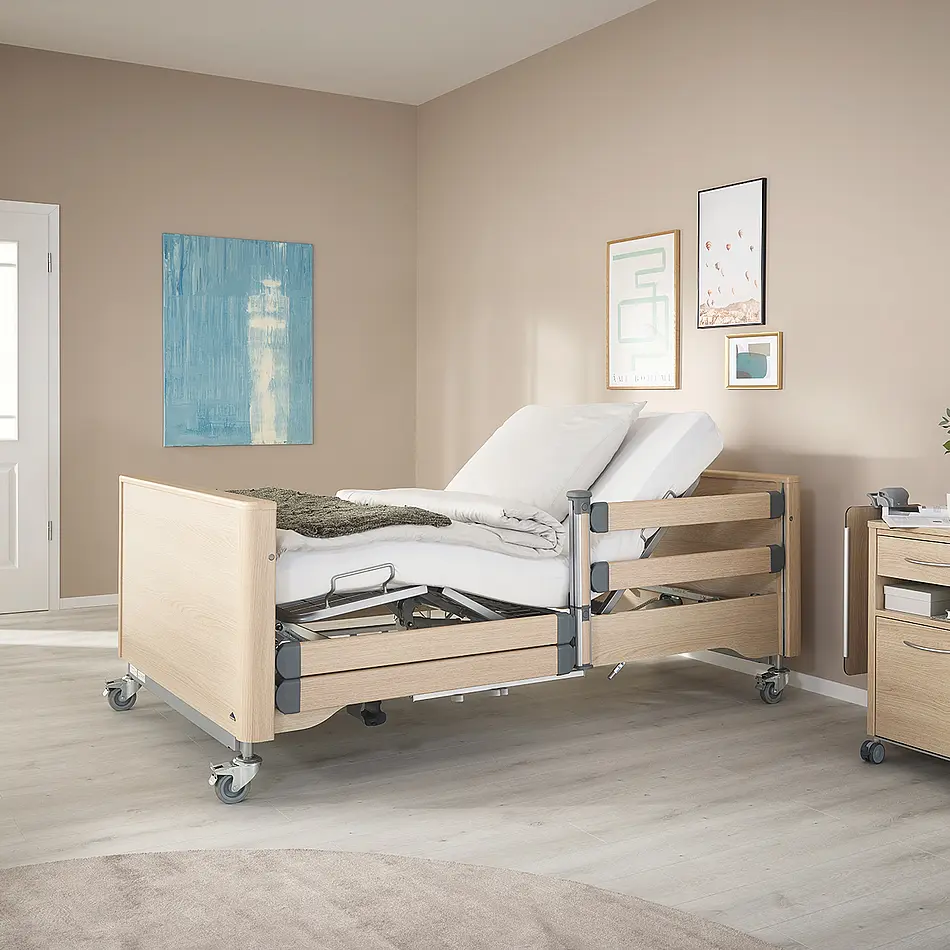

Combinable safety side systems on the Arena heavy-duty bed
The split safety side can optionally be fitted at the head end only or combined with a full-length safety side.

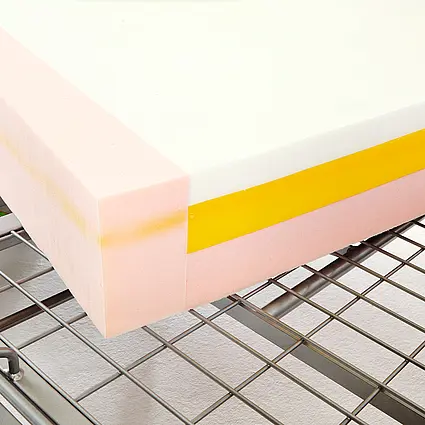

Optional heavy-duty mattress for the Arena care bed
Stiegelmeyer offers a heavy-duty mattress with high point elasticity which is specially designed for the Arena.

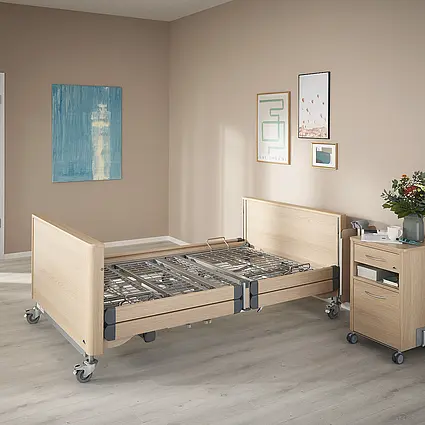

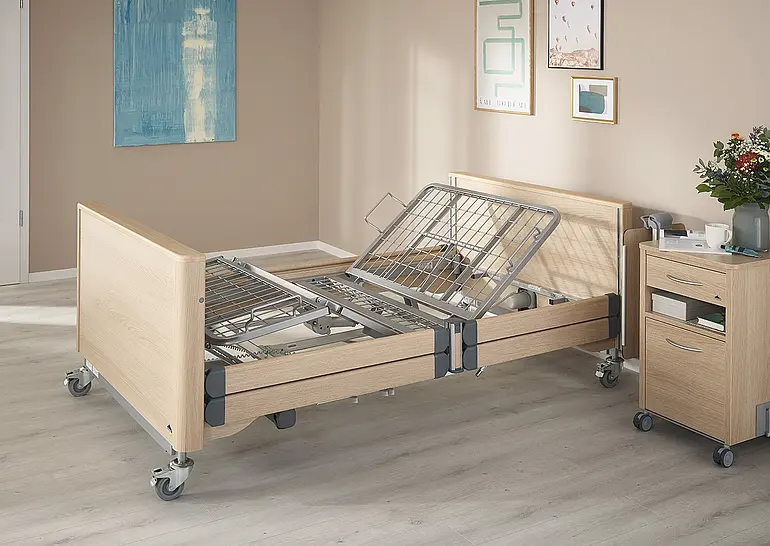

4-section mattress base of the Arena heavy-duty bed
The 4-section mattress base of the Arena heavy-duty bed can be conveniently adjusted with a handset.
Removable centre support of the Arena heavy-duty bed
The centre support of the split safety side is easy to remove if required.
Locking box and supply rails on the Arena heavy-duty bed
Locking box and supply rails facilitate everyday care work with the Arena heavy-duty bed.
Back-friendly care on the Arena heavy-duty bed
The Arena heavy-duty bed can be raised to a back-friendly working height of 80 cm.
Supply rail on the Arena heavy-duty bed
The Arena heavy-duty bed is suitable for virtually every resident, with its safe working load of 350 kg.
Foam leather covers for the safety side of the Arena heavy-duty bed
Protective foam leather padding covers are available to choose from for the Arena’s full-length and split safety side.
Trendelenburg position for residents in the Arena heavy-duty bed
The carer can adjust the Arena heavy-duty bed to the Trendelenburg position if required.
Split safety side mobilisation aid of the Arena heavy-duty bed
The centre support of the split safety side also serves as a practical mobilisation aid.
Manual CPR release on the Arena heavy-duty bed
The CPR release facility allows care staff to lower the backrest from any position.
Bed extension on the Arena heavy-duty bed
The Arena heavy-duty bed can be fitted with a bed extension for taller residents on request.
Combinable safety side systems on the Arena heavy-duty bed
The split safety side can optionally be fitted at the head end only or combined with a full-length safety side.
4-section mattress base of the Arena heavy-duty bed
The 4-section mattress base of the Arena heavy-duty bed can be conveniently adjusted with a handset.
Removable centre support of the Arena heavy-duty bed
The centre support of the split safety side is easy to remove if required.
Optional heavy-duty mattress for the Arena care bed
Stiegelmeyer offers a heavy-duty mattress with high point elasticity which is specially designed for the Arena.
Locking box and supply rails on the Arena heavy-duty bed
Locking box and supply rails facilitate everyday care work with the Arena heavy-duty bed.
Back-friendly care on the Arena heavy-duty bed
The Arena heavy-duty bed can be raised to a back-friendly working height of 80 cm.

Technical specifications

The following overview presents the technical data and equipment options for this model of bed. With a tailor-made configuration and visual design, and with suitable accessories, you can plan a bed that precisely matches your facility’s requirements and interior design. Your area sales manager will be happy to inform you about all the possibilities.

Arena
Mattress base in cm (mattress dimensions) in cm 120 x 200
External dimensions in cm 135 x 220
Safe working load in kg 350
Total weight in kg 159
Maximum weight of patient in kg 310 - 335
Tilting to Trendelenburg position in ° 10
Tilting to reverse-Trendelenburg position in ° 10
Mattress base height in cm (from - to) 40 - 80
Backrest angle in ° 70
Thigh rest angle in ° 26
Manual CPR release of the backrest
Electrically adjustable
  • = Standard
  • = Optional
  • = Not available
Arena
Wire mesh base (fixed)
4-section mattress base
  • = Standard
  • = Optional
  • = Not available
Arena
Full-length safety side
Split safety side – combinable
  • = Standard
  • = Optional
  • = Not available
Arena
Heavy-duty castor Ø 100 mm
Castor braking, individually
  • = Standard
  • = Optional
  • = Not available
Arena
Argentum paint colour
Natural Beech decor (R 24010 VV)
Precious Cherry decor (R 42002 VV)
Lindberg Oak decor (R 20021 VV)
  • = Standard
  • = Optional
  • = Not available
Arena
Handset with selective locking function
Selective locking feature
  • = Standard
  • = Optional
  • = Not available

Do you have any questions regarding Arena?

You can find further information in the download section, or you can contact us directly.
