A new definition of well-being and safety

Venta

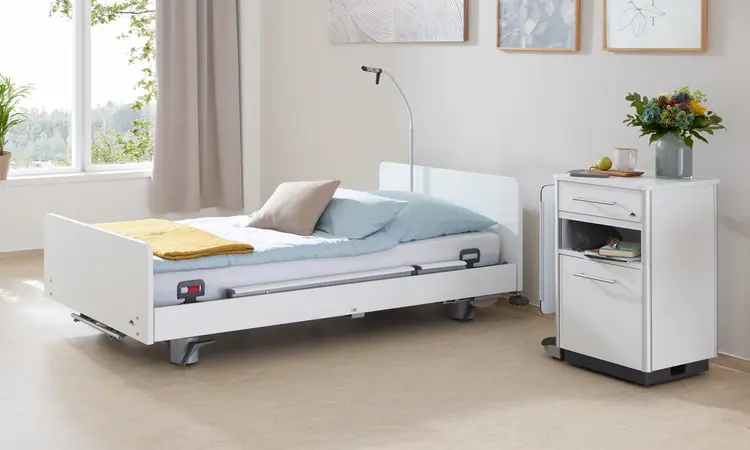

The Venta low-height bed enhances the quality of life in everyday care. The Venta supports carers with all the advantages of modern technology - such as its very easy-to-operate safety side. At the same time, it is a cosy, tailored and comfortable bed for the resident.

Model facts

Low-height bed promotes fall prevention without the use of deprivation of liberty safeguards
Safety side with one-hand operation leaves room for getting in and out of bed
Telescopic safety side available as an option
Attractive design with Softcover options

Model variants

The elegant low-height bed

Venta – Standard

Height adjustment range approx. 25 – 80 cm
3-stop function for getting in and out of bed at an ergonomic height
Cost-saving 24-volt drive system

Comfort for heavy residents

Venta – forto variant

High safe working load of 260 kg
Mattress base width 100 cm
Height adjustment range approx. 37 – 81 cm

Particularly good mobility

Venta – movo variant

100 mm double castors for easy mobility and manoeuvrability
From the comfort of their bed, residents can be part of everyday life with other people
Easy reprocessing of beds

Alle Zusatzinformationen auf einen Blick

Wir stellen Ihnen unser Material gerne zum Download zur Verfügung.

By loading the video, you accept YouTube's privacy policy.

The advantages for you

MOBILITY - With its extensive adjustment range and its modern head-end safety side, the Venta protects residents from fall injuries without restricting their freedom.

ERGONOMIC - The safety side, which can be operated with only one hand, and the optional LCD handset ensure effortless operation of the bed even in tense situations.

COMFORT - Textile Softcovers in attractive colours, elegant wood decors and customised head and footboards are available to adapt the bed to any environment.

The care bed Venta can be selected with the head combination Nobla and Nobla reha — The care bed Venta with the head combination Nobla and Nobla reha and the decor Chalk.

Optional LCD handset for the Venta care bed — The optional LCD handset has just three buttons and an illuminated display, giving all users optimum control of the bed.

Unlocking magnet for the LCD handset for the Venta care bed — The unlocking magnet on the mattress retainer bar is used to select control levels on the LCD handset.

Optional chassis cover of the Venta care bed — The optional chassis cover matches the colour of the wood decor of the Venta care bed.

Infinitely adjustable Venta care bed — With its infinitely adjustable mattress base, backrest and leg rests, the Venta can be adjusted to meet every ...

Optional Softcovers on the Venta care bed — The Venta care bed looks particularly cosy and personalised with the addition of optional Softcovers.

Protection and mobility with the Venta safety side — The Venta safety side provides protection while also enabling the resident to get in and out of bed unimpeded.

Ergonomic care enabled by the large height-adjustment range of the Venta — At its highest setting of 80 cm, care staff can work ergonomically at a back-friendly height.

Fall prevention with the Venta low-height bed — In its lowest position of only around 25 cm, the Venta helps to prevent injuries due to falls.

Optional easy-clean Softcovers on the Venta care bed — The optional Softcovers are easy to clean - stains can generally be removed with a brush.

Venta care bed extension — The extension to the Venta care bed can be pulled out in a few easy steps without the use of tools.

Effortless operation of Venta safety side — The Venta’s safety side can be effortlessly lowered and raised with just one hand.

Chassis cover included as standard on the Venta care bed — Four plastic covers conceal the ends of the longitudinal struts of the chassis as standard.

Technical specifications

The following overview presents the technical data and equipment options for this model of bed. With a tailor-made configuration and visual design, and with suitable accessories, you can plan a bed that precisely matches your facility’s requirements and interior design. Your area sales manager will be happy to inform you about all the possibilities.

	Venta – Standard	Venta – forto variant	Venta – movo variant
Mattress base in cm (mattress dimensions) in cm	90 (87), 100 (97) x 200	100 (97) x 200	90 (87), 100 (97) x 200
External dimensions in cm	103 x 211, 113 x 211	113 x 211	103 x 211, 113 x 211
Bed extension in cm	10 / 20	10 / 20	10 / 20
Ground clearance in cm ca.	15	18	15
Safe working load in kg	225	260	225
Total weight in kg	140	150	140
Maximum weight of patient in kg ca.	185 - 210	220 - 250	185 - 210
Tilting to Trendelenburg position in °	12	12	12
Tilting to reverse-Trendelenburg position in °	12	12	12
Mattress base height in cm (from - to)	25 - 80	31 - 85	28 - 83
Backrest angle in °	70	70	70
Thigh rest angle in ° ca.	40	40	40
Auto contour adjustment / Fowler position
Manual CPR release of the backrest
Electrically adjustable
24-volt drive concept with external transformer

* = Not available in all colors
= Standard
= Optional
= Not available

	Venta – Standard	Venta – forto variant	Venta – movo variant
Mattress base division in cm	85/15/40/60	85/15/40/60	85/15/40/60
Backrest length compensation	10	10	10
PP hygiene mattress base
PP hygiene mattress base for belt system
4-section mattress base
Mattress base tiltable to reverse-Trendelenburg position
Mattress base tiltable to Trendelenburg position

* = Not available in all colors
= Standard
= Optional
= Not available

	Venta – Standard	Venta – forto variant	Venta – movo variant
Protective height of safety sides	42	42	42
Swivelling safety side
Swivelling safety side, including horizontal telescope
Gap closure
Telescopic side panels

* = Not available in all colors
= Standard
= Optional
= Not available

	Venta – Standard	Venta – forto variant	Venta – movo variant
Double castor Ø 50 mm
Double castor Ø 100 mm
Double castor Ø 125 mm
Castor braking, central
Castor braking, per axle

* = Not available in all colors
= Standard
= Optional
= Not available

	Venta – Standard	Venta – forto variant	Venta – movo variant
Argentum paint colour
Bella Noce Choco decor (R 30019 VV)
Natural Beech decor (R 24010 VV)
Style Oak Cinnamon decor (R 20100 VV)
Precious Cherry decor (R 42002 VV)
Havana Cherry decor (R 42006 VV)
Royal Maple decor (R 27001 VV)
Chalk decor (U 11102 VV)
Lindberg Oak decor (R 20021 VV)
Magnolia decor (U 11509 VV)
Truffle Baron Elm decor (R 37003 VV)
Alero
Camo
Lito
Lito reha
Nobla
Nobla reha
Pino
Podego
Headboard and footboard completely removable
