The modular hospital bed

Evario one

The Evario one meets all the requirements of a modern hospital bed. Its slim design makes it ideal for outpatient care in limited spaces—comfortable, space-saving, and maneuverable. Thanks to a wide range of equipment options, it can be used flexibly in clinics, day clinics, surgical centers, or medical practices. Mobility, comfort, and a homelike design with a choice of finishes make the Evario one the perfect solution for versatile care environments.

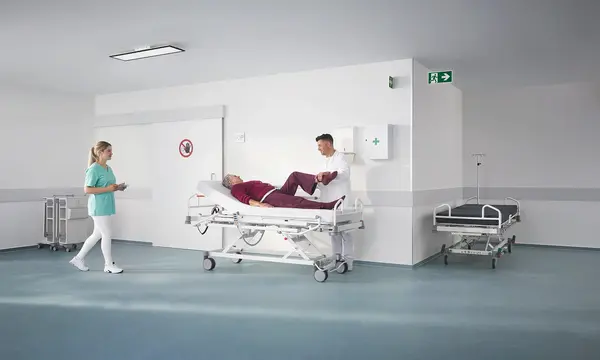

Evario one hospital bed in a modern outpatient clinic with medical equipment, designed for safe and flexible patient care.

Space-saving
even in
narrow
++++ Now also for outpatient applications ++++                                  ++++ Now also for outpatient applications ++++                                  ++++ Now also for outpatient applications ++++
ON THIS PAGE YOU WILL FIND :

Model facts

  • 80 cm or 90 cm wide mattress base
  • High safe working load of 250 kg, including during battery operation
  • Height adjustment range of 36 to 82 cm, depending on the type of castor
  • Choice of three easy-to-use safety sides
  • Attractive, modern look in Intercontinental design

Advantages for you

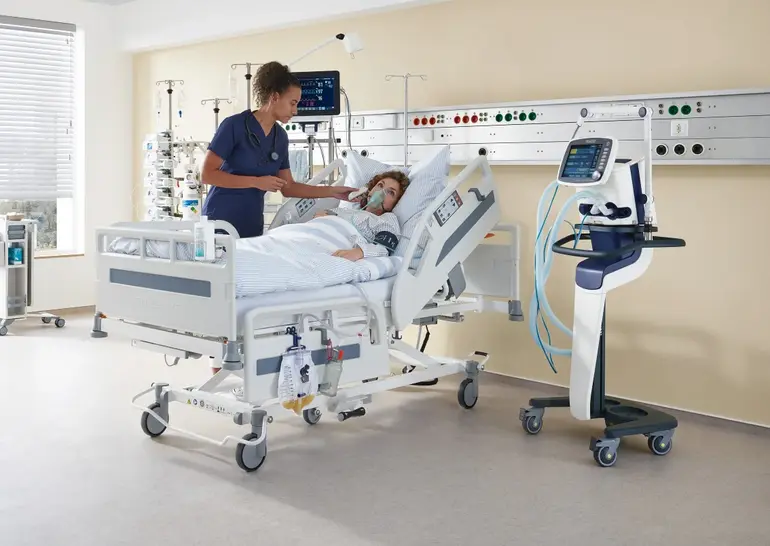

In a hospital room equipped with a bed and medical equipment, a nurse takes a patient's temperature.

Full protection

Split 50/50 safety side

  • 50/50 safety side is ideal for e.g. intensive care
  • Fixed headboard (optional)
  • X-ray backrest (optional)
  • Attachment options for accessories

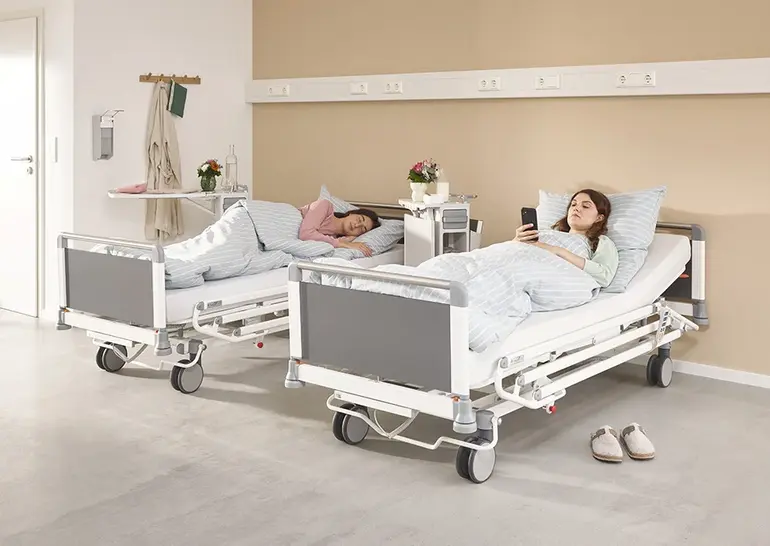

Evario one hospital bed featuring pivoting 3/4 safety sides for ergonomic operation and patient safety.

Space-saving model

Pivoting ¾ safety side

  • Swivels down parallel to the bed to save space, ideal for small rooms
  • 80 cm or 90 cm wide mattress base
  • Integrated bed extension – easily adjustable for taller patients
  • Comfortable cardiac chair position – adjustable at the touch of a button
  • Additional electric adjustment options – individually adjustable

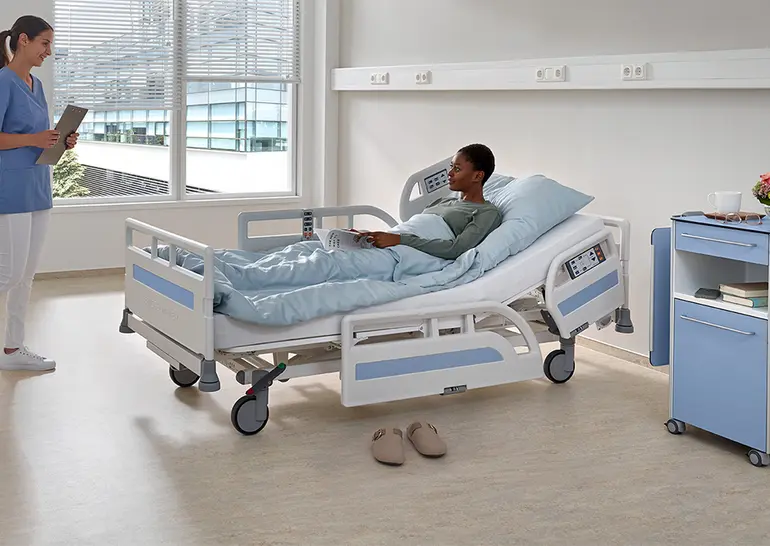

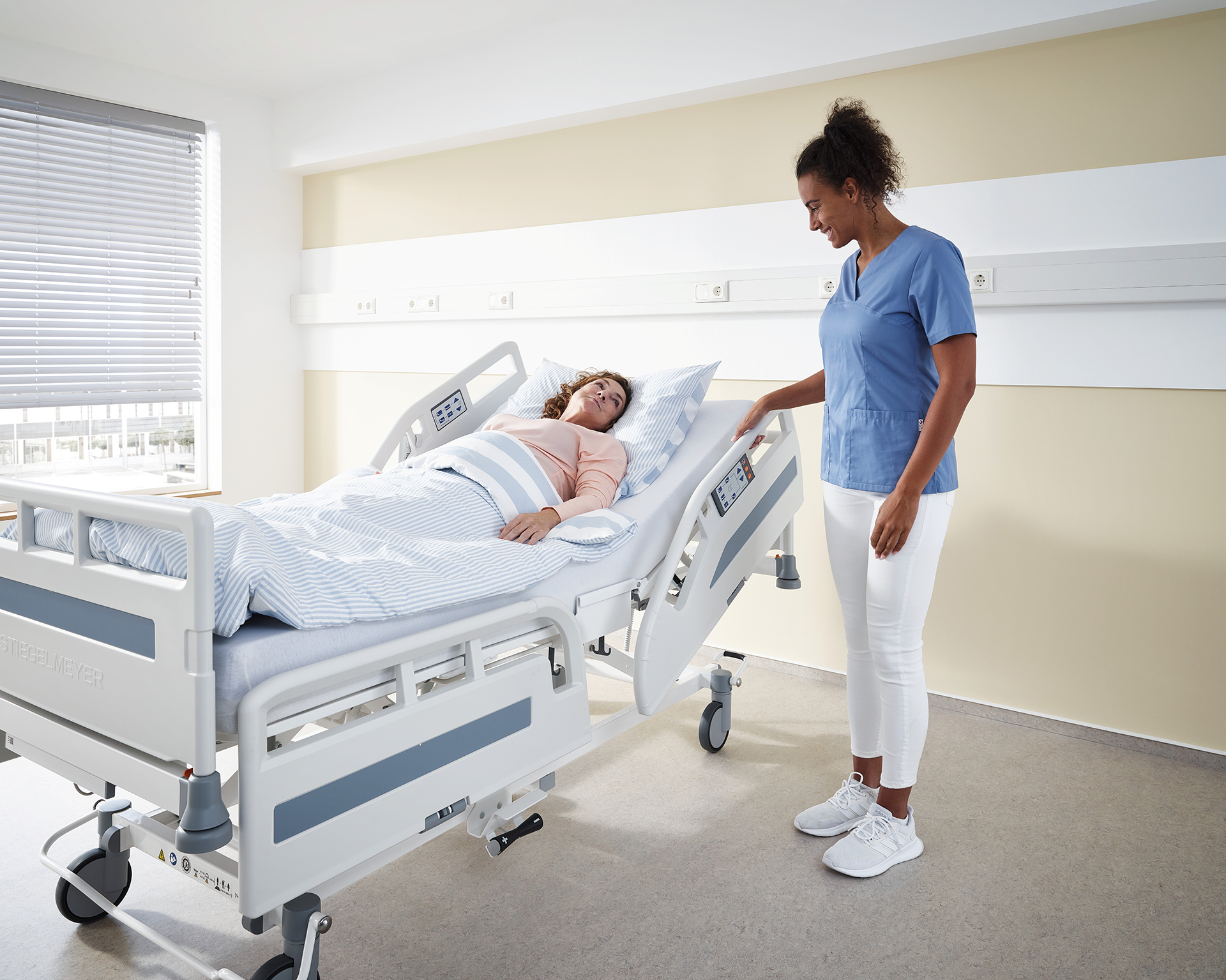

Evario one hospital bed with split 3/4 safety sides for safe mobilisation and patient comfort.

Modern and hygienic

Split ¾ safety side

  • Protects patients combined with the freedom to get in and out of bed
  • Aids early mobilisation and recovery of patients
  • One-hand operation
  • Large flat surfaces facilitate thorough manual cleaning

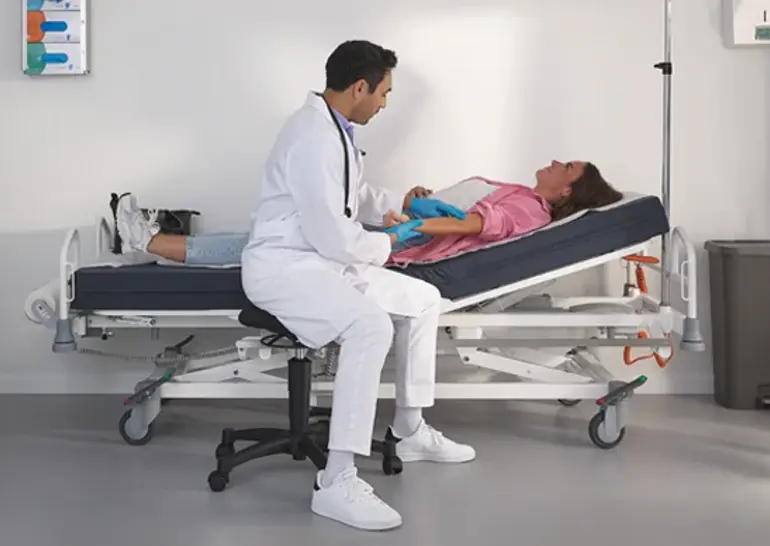

Evario one hospital bed shown without safety sides for unobstructed patient access and flexible care.

Ideal for outpatient care

Without safety sides

  • Flexible configuration – even without safety sides
  • 80 cm wide mattress base, fits through standard doors in public facilities
  • Alternatively available with DIN rails on both long sides, e.g., for attaching armrests
  • Head and footboard can be replaced with push handles
  • Useful accessories, such as a paper roll holder or IV stand, complement the equipment for day clinics or medical centers

All additional information at a glance

We are pleased to provide our informational materials for you to download.

Advantages for you

CHOOSE YOUR PREFERRED CONTROL CONCEPT:
Ideal integrated resources are available for controlling the Evario one – an ergonomic handset, the “light”-version integrated control panel (in conjunction with split safety sides), the nurse control at the foot end available in different sizes (S and M) and a practical foot pedal for adjusting the height. An ideal combination is available for every type of use.

HELP IN AN EMERGENCY:
Every second counts in an emergency. All Evario one control devices feature a quick control button for setting CPR and Trendelenburg positions. Using the manual CPR lever at the head end saves even more time. The headboard and footboard can be removed within seconds to provide better access to the patient.

GOOD MANOEUVRABILITY:
Sturdy central-locking 125 or 150mm castors give Evario one its excellent handling characteristics. An optional fifth castor improves the directional stability and precise handling characteristics even further. This makes the job easier for staff and prevents expensive collision damage.

► Instruction videos of the functions on the Evario one hospital bed

By loading the video, you accept YouTube's privacy policy.

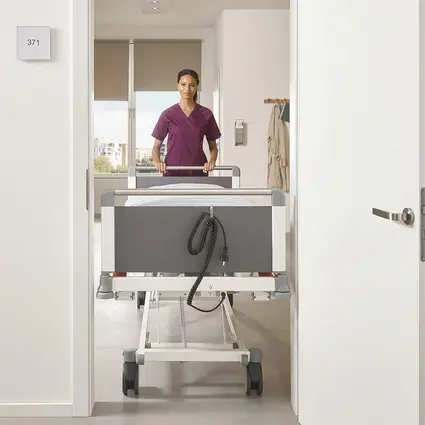

Caregiver pushes narrow Evario one bed with a width of 89 cm through door
The narrow bed with an external width of 89,5 cm fits through standard doors.

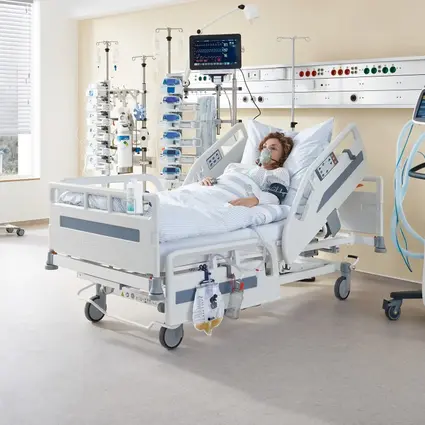

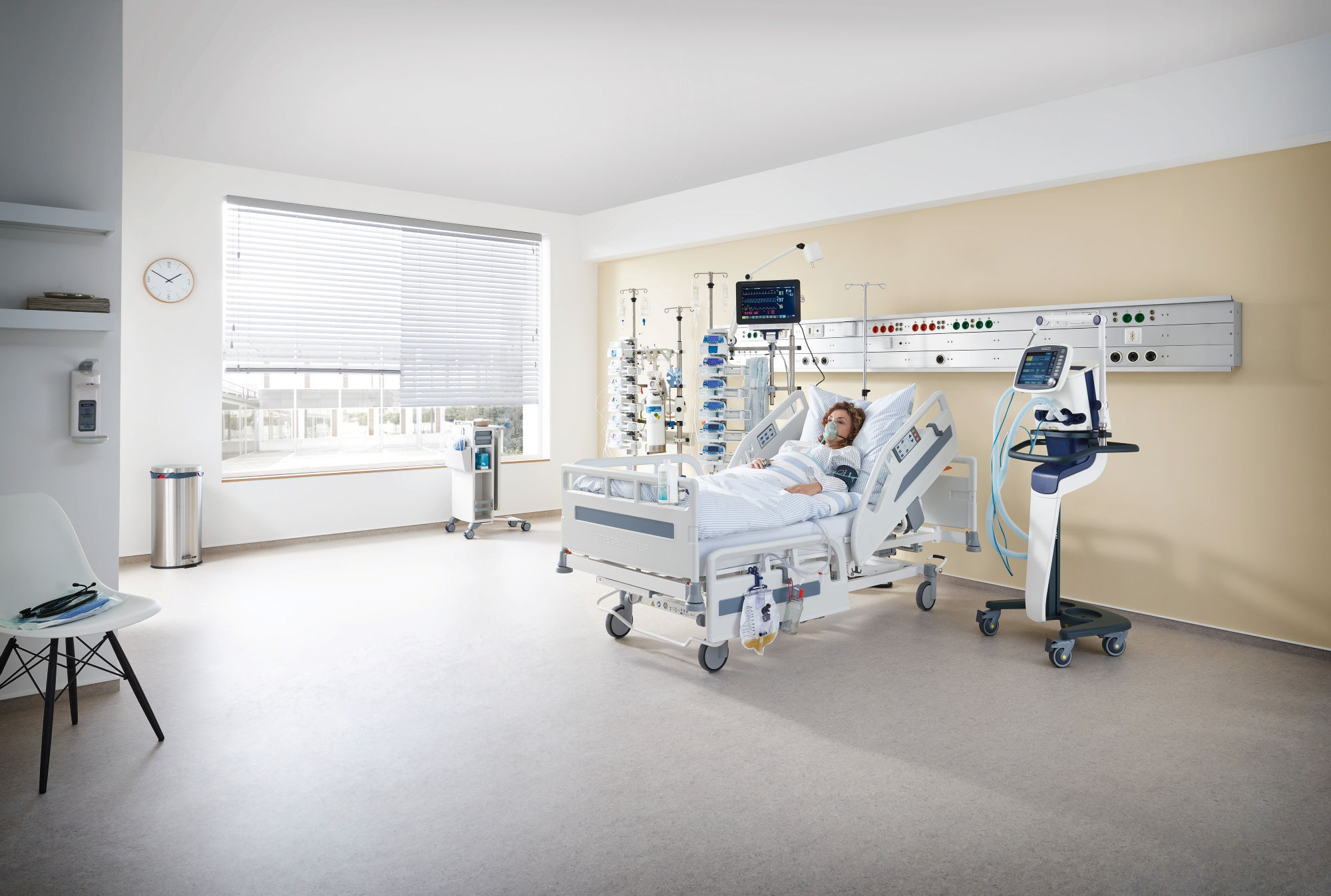

Optionale Montageleisten und praktische Griffstangen unterstützen die moderne Patientenpflege von allen Seiten.
Optional mounting bars and practical handle bars facilitate modern patient care from all sides.

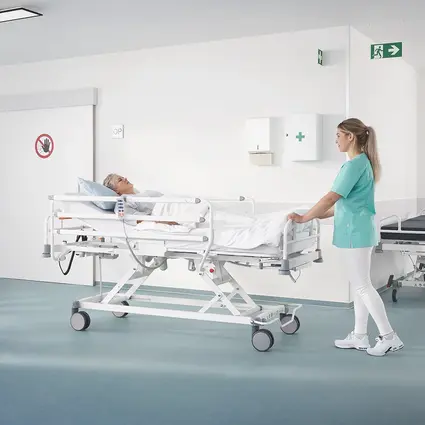

Push handles at the head and foot ends, Evario one
The push handles can be used at both the head and foot ends. They enable an ergonomic and comfortable grip position, thereby making transport easier.

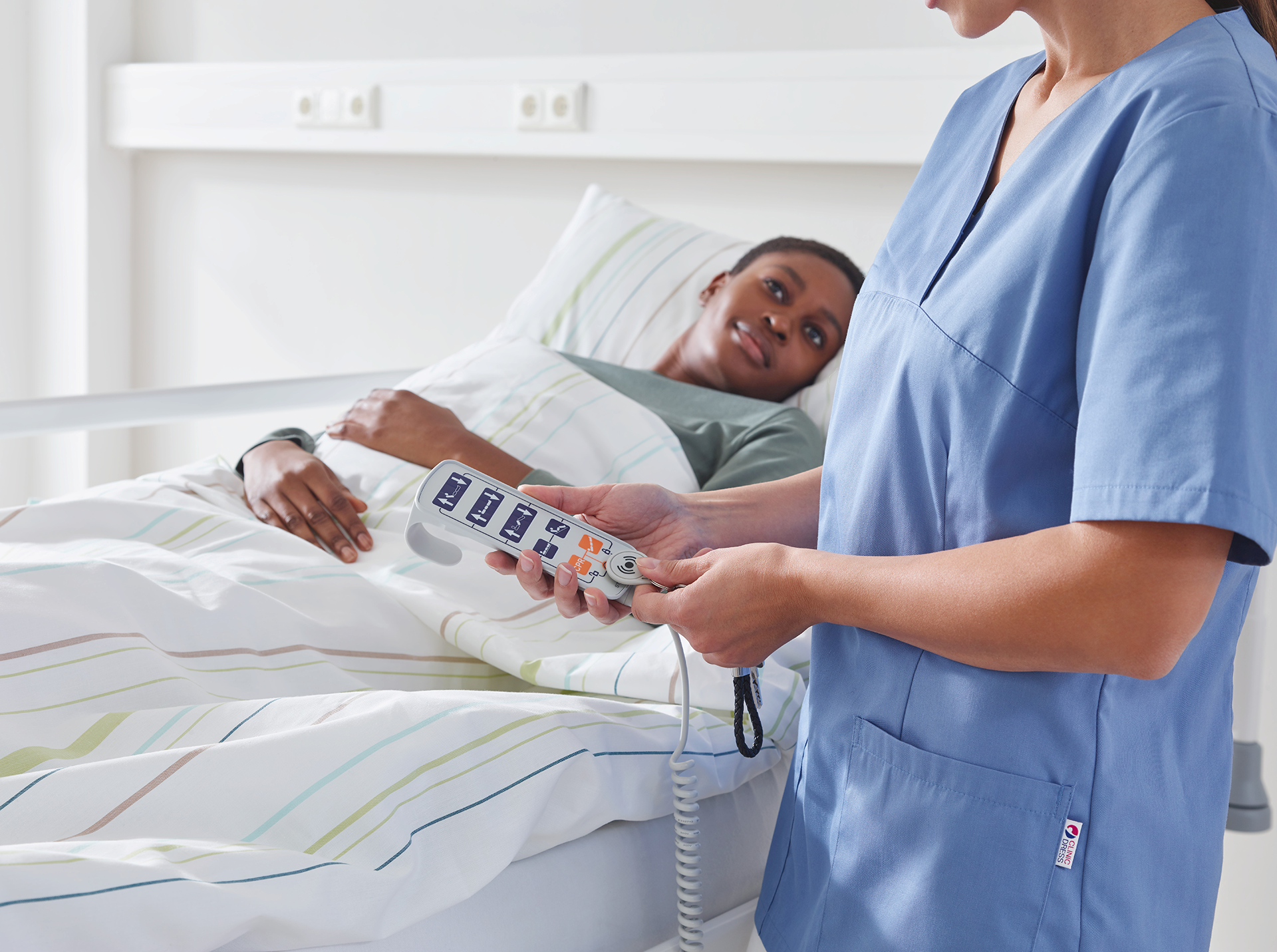

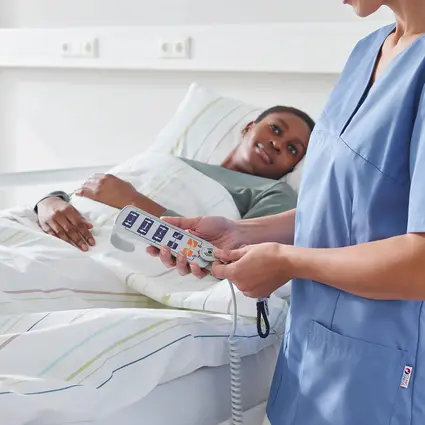

Caregiver unlocks Evario one functions with magnetic hand switch
If necessary, bed functions can be locked and unlocked by nursing staff using a handset.

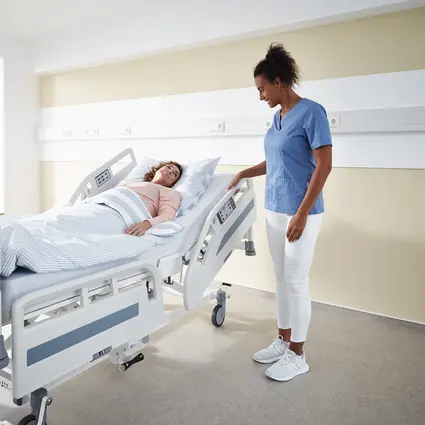

Caregiver adjusts safety sides of Evario one hospital bed
The split safety sides can be lowered or raised with one hand.

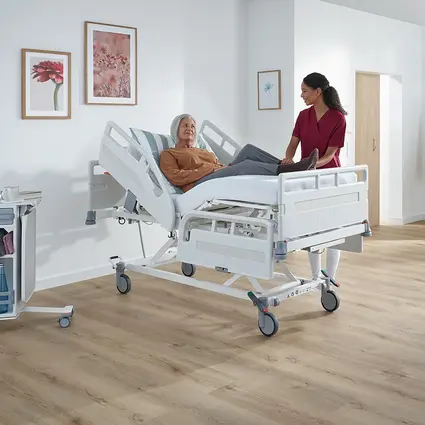

Patient in Evario one, nurse adjusts working height ergonomically
The optimal individual working height can be adjusted in a seamless manner using one of the control elements.

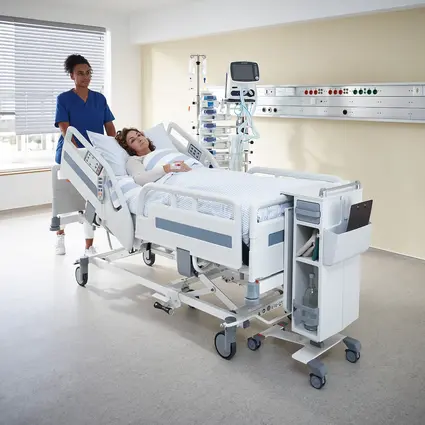

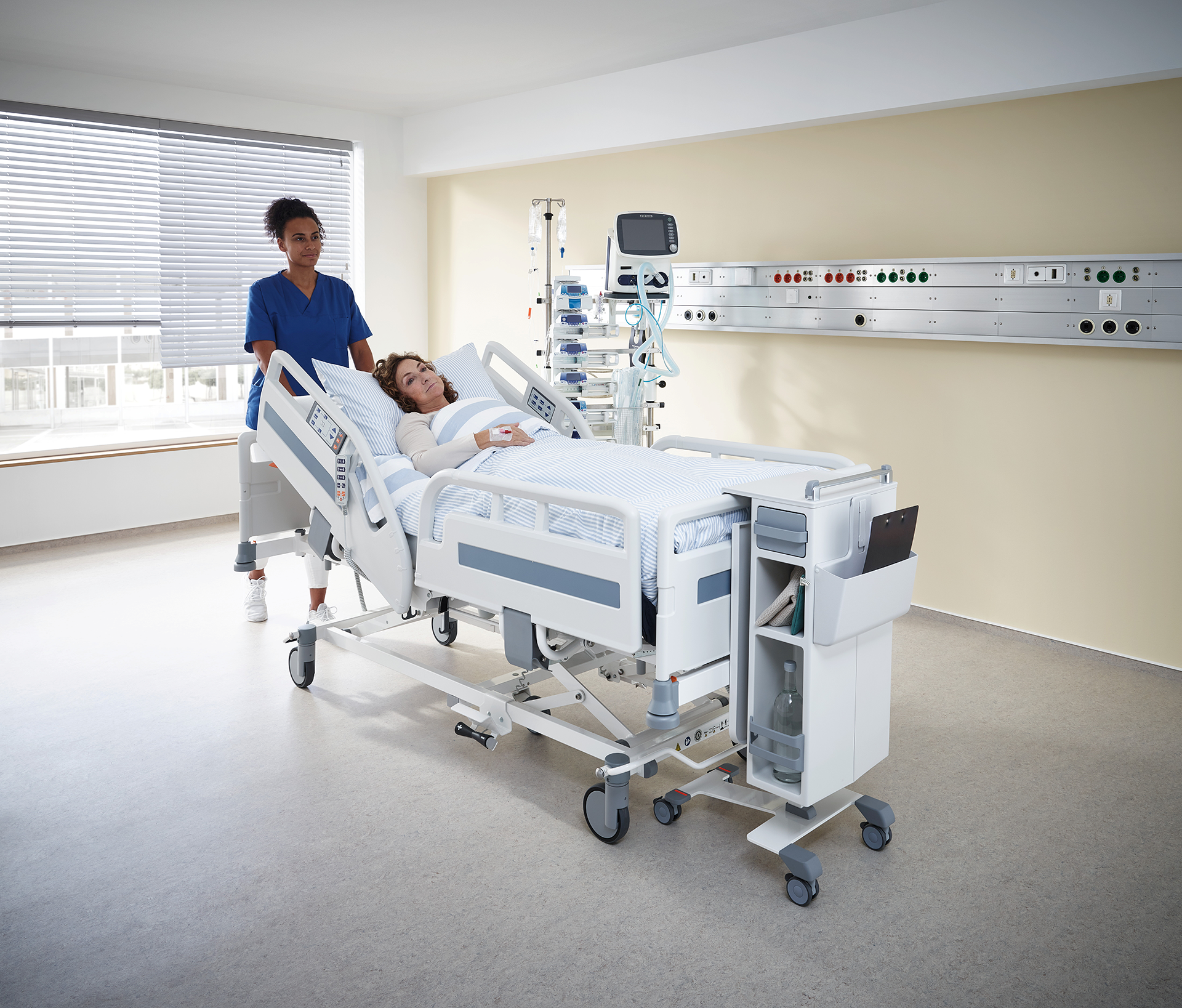

Caregiver moves Evario one Hospital bed with good driving characteristics
Good handling characteristics and effortless transport of the Quado bedside cabinet support everyday hospital life.

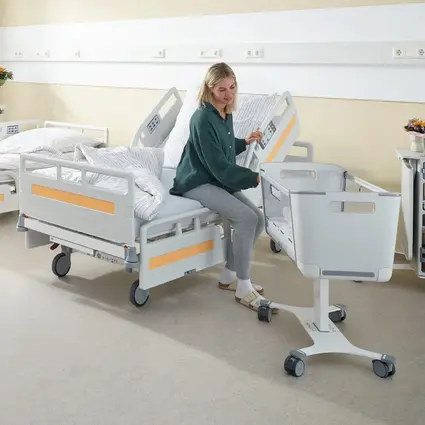

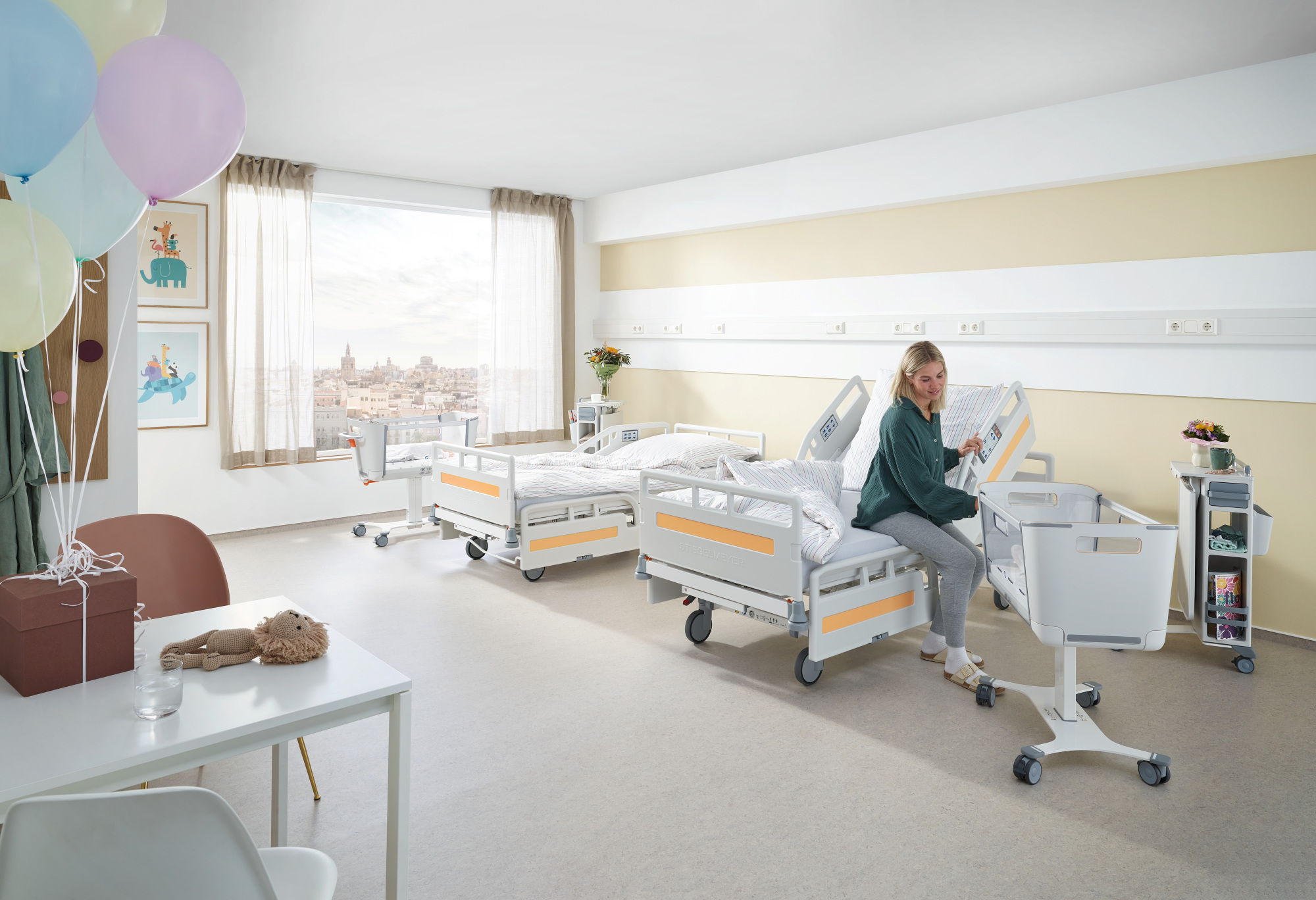

Evario one continuous handrail
The split safety sides and the surrounding handrails encourage patients to move around independently.

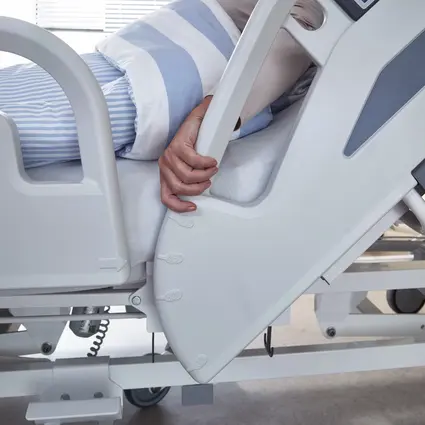

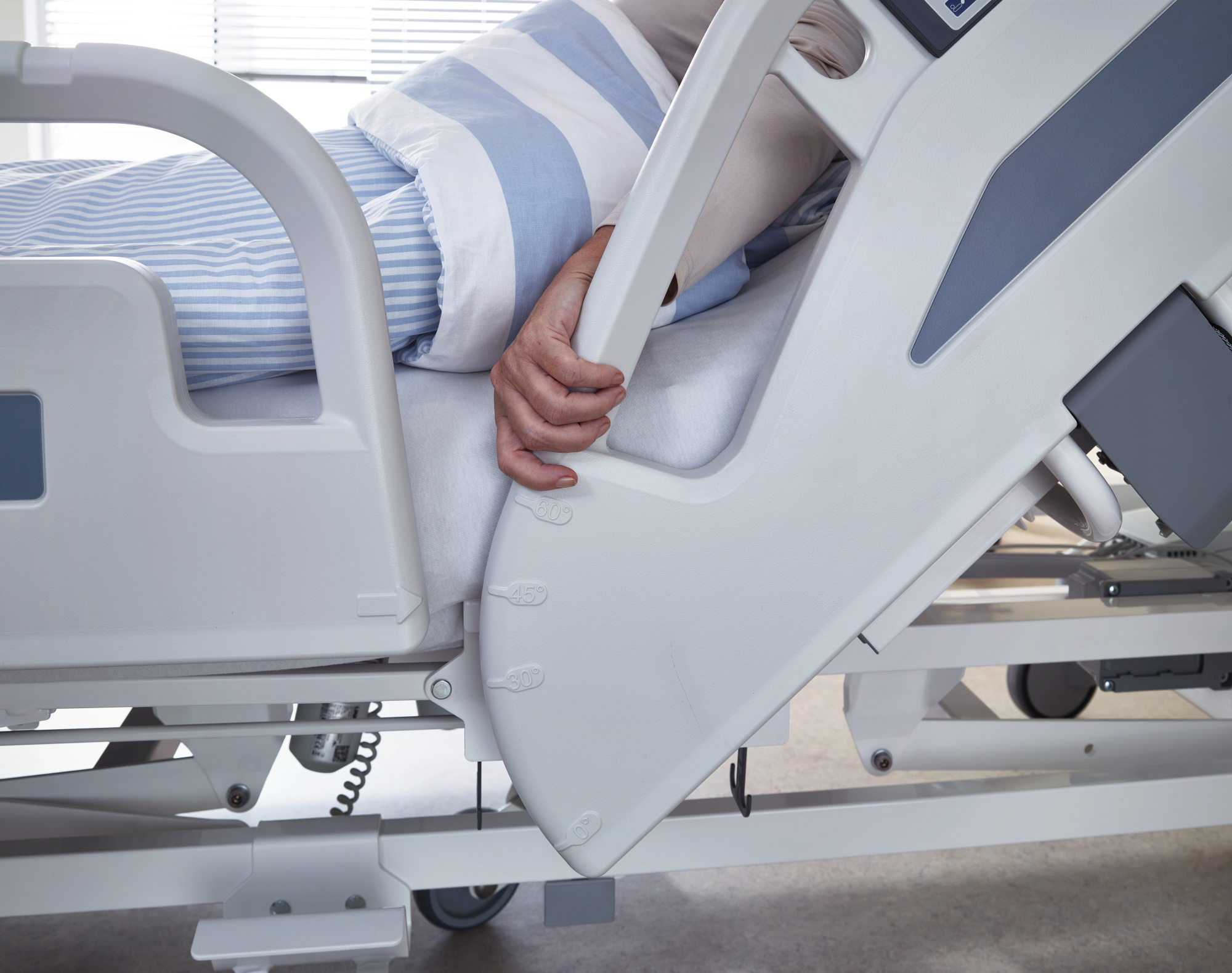

Patient reaches for raised safety sides with angle indicator on the Evario one
Angle indicator is integrated in the head-end element of the 50/50 safety sides.
Caregiver pushes Evario one hospital bed down the hospital corridor
Brake bar at the foot end allows the bed to be braked easily also in a low position.

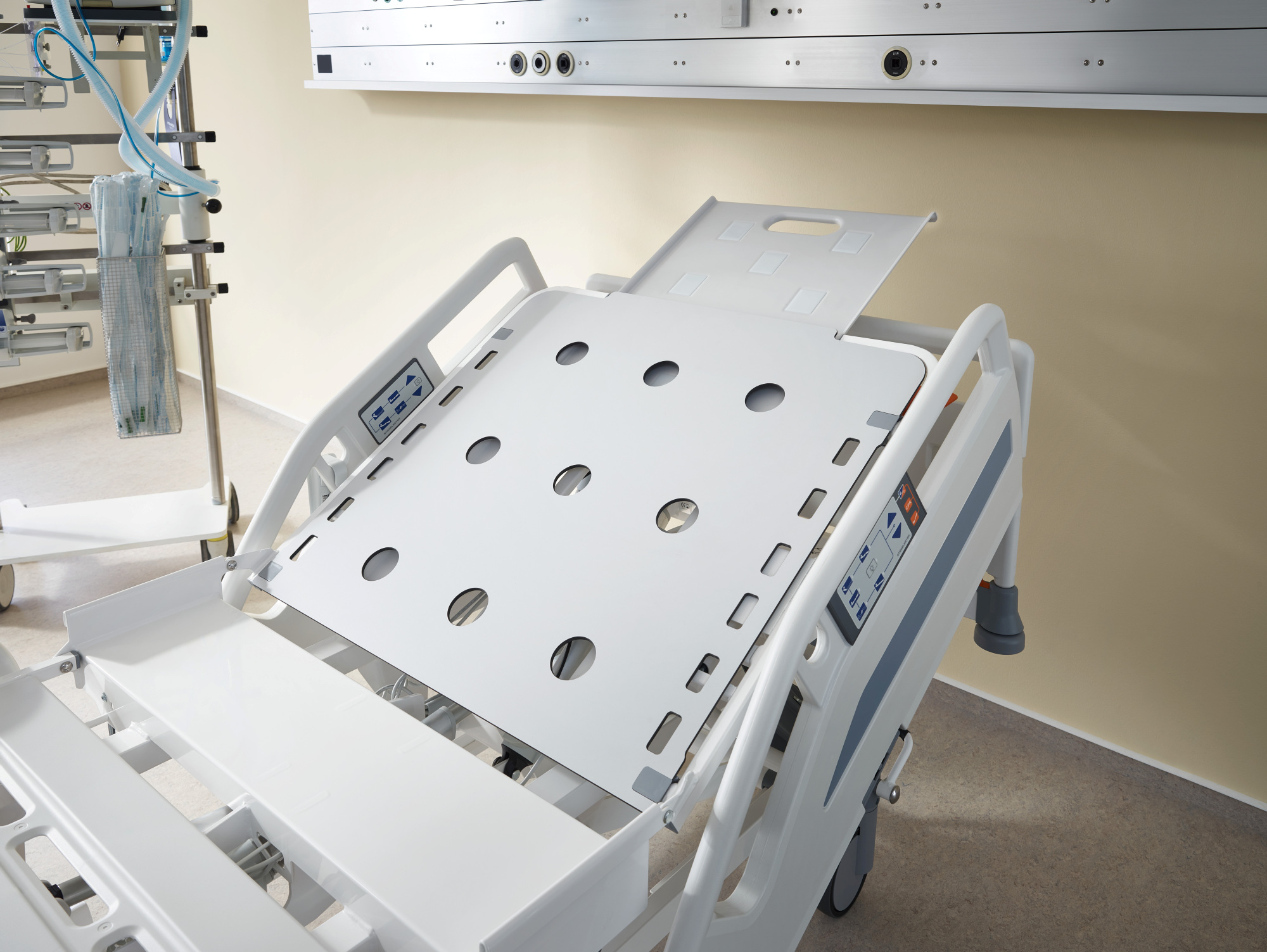

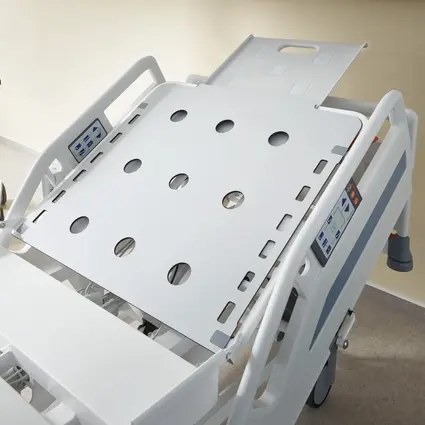

X-ray-compatible backrest on the Evario one
X-ray backrest for use in IMC and ICU.

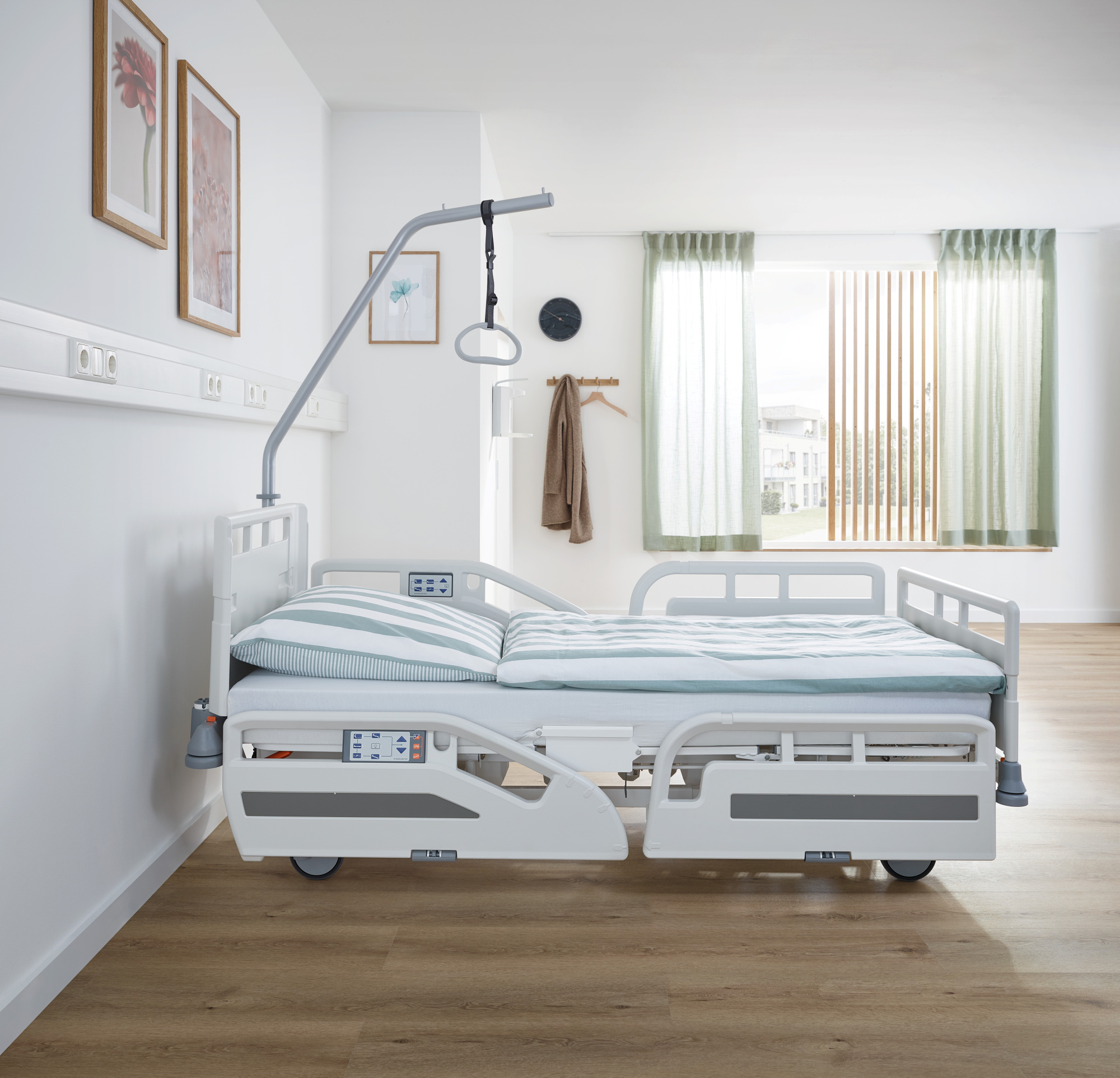

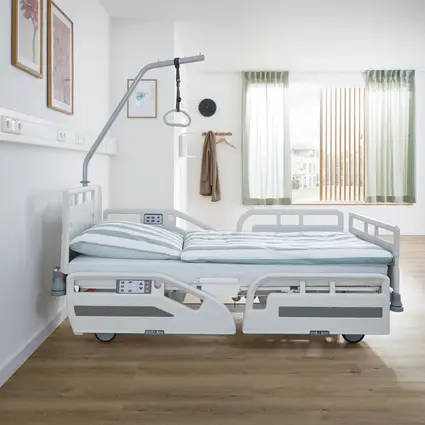

Evario one safe height adjustment with optional fixed headboard (not moving)
Fixed headboard prevents collisions with room furnishings.

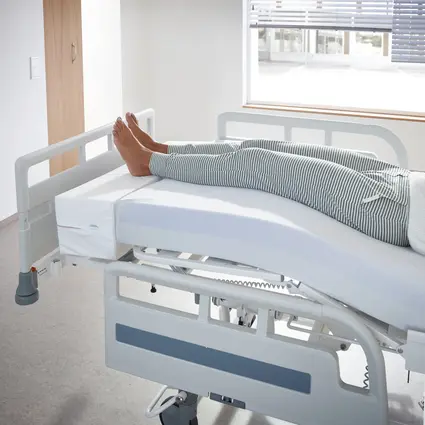

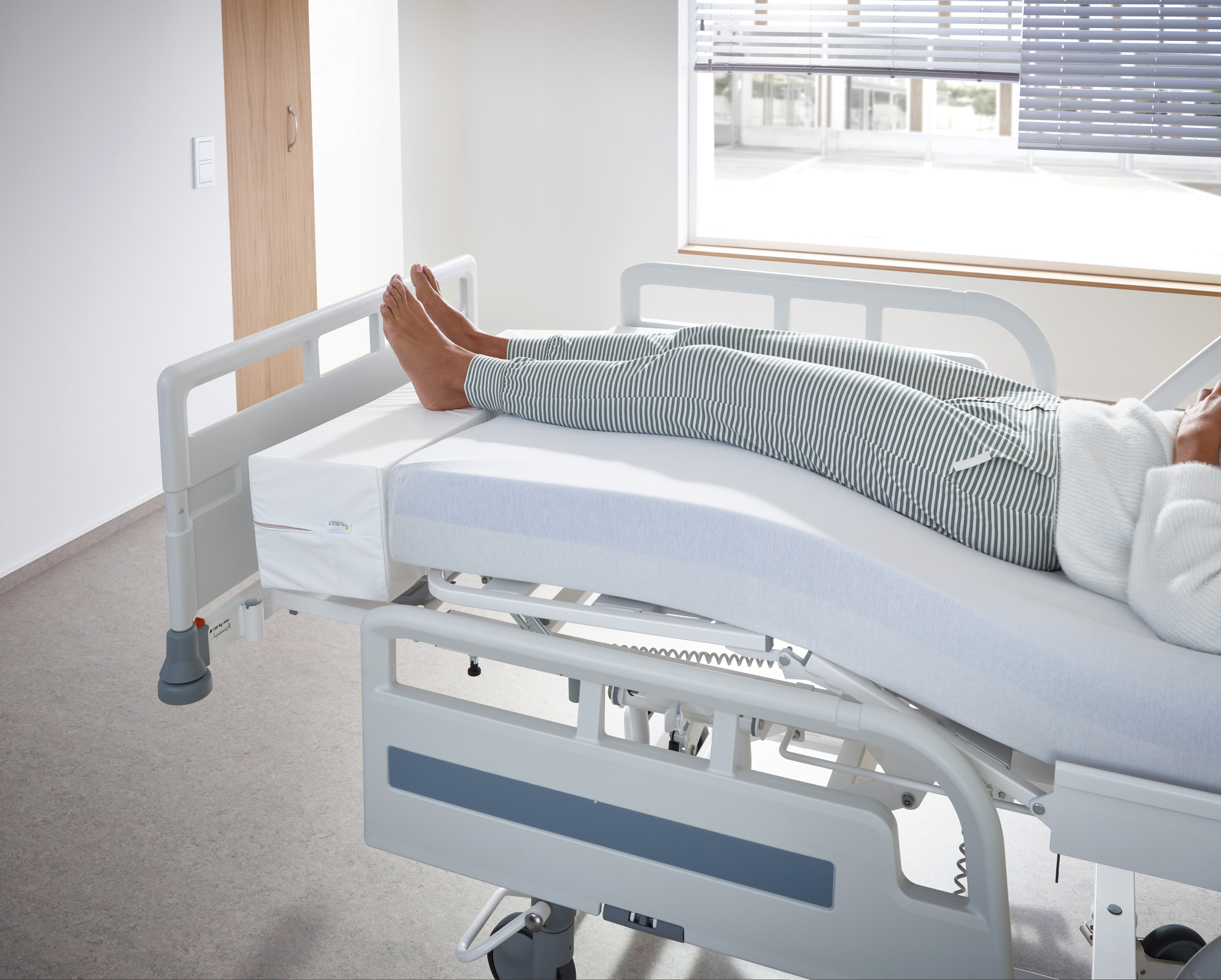

Evario one with bed extension and footboard unfolded
The optional bed extension and fold-out lower leg extension provide additional comfort for tall patients.
Caregiver pushes narrow Evario one bed with a width of 89 cm through door
The narrow bed with an external width of 89,5 cm fits through standard doors.
Optionale Montageleisten und praktische Griffstangen unterstützen die moderne Patientenpflege von allen Seiten.
Optional mounting bars and practical handle bars facilitate modern patient care from all sides.
Push handles at the head and foot ends, Evario one
The push handles can be used at both the head and foot ends. They enable an ergonomic and comfortable grip position, thereby making transport easier.
Caregiver unlocks Evario one functions with magnetic hand switch
If necessary, bed functions can be locked and unlocked by nursing staff using a handset.
Caregiver adjusts safety sides of Evario one hospital bed
The split safety sides can be lowered or raised with one hand.
Patient in Evario one, nurse adjusts working height ergonomically
The optimal individual working height can be adjusted in a seamless manner using one of the control elements.
Caregiver moves Evario one Hospital bed with good driving characteristics
Good handling characteristics and effortless transport of the Quado bedside cabinet support everyday hospital life.
Evario one continuous handrail
The split safety sides and the surrounding handrails encourage patients to move around independently.
Patient reaches for raised safety sides with angle indicator on the Evario one
Angle indicator is integrated in the head-end element of the 50/50 safety sides.
Caregiver pushes Evario one hospital bed down the hospital corridor
Brake bar at the foot end allows the bed to be braked easily also in a low position.
X-ray-compatible backrest on the Evario one
X-ray backrest for use in IMC and ICU.
Evario one safe height adjustment with optional fixed headboard (not moving)
Fixed headboard prevents collisions with room furnishings.
Evario one with bed extension and footboard unfolded
The optional bed extension and fold-out lower leg extension provide additional comfort for tall patients.

Technical specifications

The following overview presents the technical data and equipment options for this model of bed. With a tailor-made configuration and visual design, and with suitable accessories, you can plan a bed that precisely matches your hospital’s requirements and interior design. Your area sales manager will be happy to inform you about all the possibilities.

Evario one 90 cm Evario one 80 cm
External dimensions in cm 99,7 x 214 89,5 x 214
External dimensions (with fixed headboard) in cm 99,7 x 219
Mattress base (mattress dimensions) 87/90 x 200 80 x 200
Safe working load in kg 250 250
Maximum weight of patient in kg 240 240
Protection height of pivoting ¾ safety sides in cm 38 38
Protection height of split ¾ safety side in cm 39
Protective height of split 50/50 safety side in cm 40
  • * = Not available in all colors
  • = Standard
  • = Optional
  • = Not available
Evario one 90 cm Evario one 80 cm
Tilting to Trendelenburg position in ° 15,5 15,5
Tilting to reverse-Trendelenburg position in ° 15,5 15,5
Mattress base height (cover castor Ø 125 mm) approx. 36 - 80 36 - 80
Mattress base height (integral castor Ø 150 mm) in cm approx. 38 - 82 38 - 82
Backrest angle in ° 70 70
  • * = Not available in all colors
  • = Standard
  • = Optional
  • = Not available

Evario one – functions explained simply in a video

Discover the modular hospital bed Evario one in detail: our instruction videos show you step by step how to make the most of its wide range of functions. The videos help nursing staff and technical teams to use the Evario one safely, efficiently and ergonomically in everyday hospital life.

Overview of all Evario one Instruction videos
