Patientenzimmer in der Nacht. Eine Patient steht auf und verlässt das Bett. Das Assistenzsystem reagiert und sendet ein Signal.

Out-of-Bed and
Out-of-Bed flex assistance systems

ON THIS PAGE YOU WILL FIND :

Individual safety for fall-prone patients

Out-of-Bed

Solutions from a single source

The integrated Out-of-Bed assistance system offers enhanced protection for any patients prone to falls (fall prevention), while significantly easing the workload of nursing staff. Designed to improve safety, especially during night time hours when staffing is reduced or limited, this system provides real-time monitoring and proactive support, ensuring a higher standard of care with greater peace of mind for both patients and nursing staff.

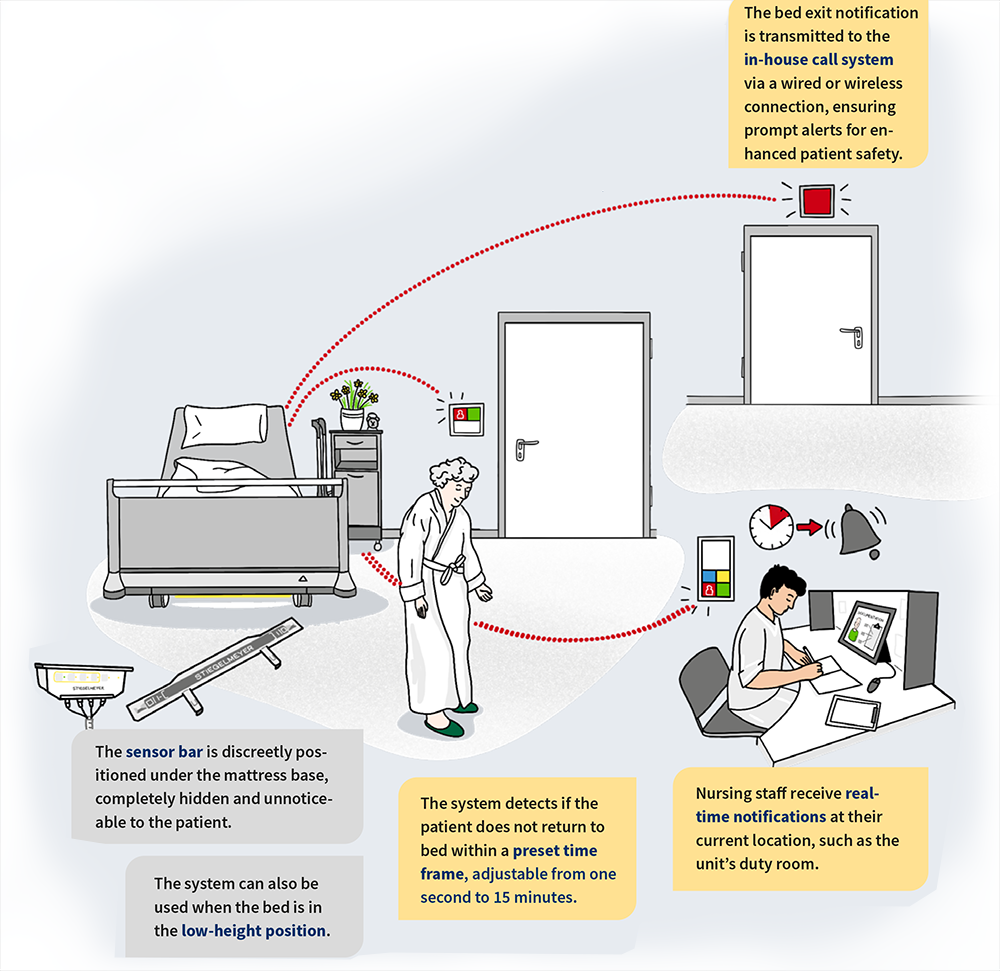

Schaubild vom Ablauf und Funktion vom Out-of-Bed System. Patient steht aus dem Bett auf und die Bodenbeleuchtung unter dem Bett geht an. Ein Signal wird an die Angalge gesendet und aktiviert eine Hinweislampe im Patientenzimmer und über der Zimmertür im Flur. Das Signal wird weitergeleitet zur Pflegekraft, Dekstop Browser.
1 2 3 4

Step 1 – Automatic ighting activated
Step 1 – Automatic ighting activated

The automatic lighting system activates the reading lamp and under bed light as soon as the patient sits up.

Back to overview

Step 2 – Automated response from the system
Step 2 – Automated response from the system

The system detects if the patient does not return to bed within a preset time frame, adjustable from one second to 15 minutes.

Back to overview

Step 3 – Automated response from the system
Step 3 – Automated response from the system

The bed exit notification is transmitted to the in-house call system via a wired or wireless connection, ensuring prompt alerts for enhanced patient safety.

Back to overview

Step 4 – Caregiver is informed
Step 4 – Caregiver is informed

Nursing staff receive real-time notifications at their current location, such as the unit’s duty room.

Back to overview

Out-of-Bed at a glance

  • Integrated system ready for immediate use
  • Ideal protection – sensors detect when a patient sits up in bed
  • Better orientation at night thanks to the automatic lighting system
  • Setting up the handset is intuitive and language-independent
  • Easy to use operation, offering practical aid to decision-making for nursing staff with 4 preset time delays, ranging between 1 second and 15 minutes
  • Easier bed reprocessing due to discreetly integrated components

Compatible hospital bed models:

Compatible nursing home bed models:

  • Tereno – the floor-level bed for extra protection
  • Elvido-series – low-height beds for comfort and relief
  • Venta-series – Care beds for greater homelike comfort

The sensor bar for flexible use

Out-of-Bed flex

Looking for greater flexibility and cost-efficiency? The Out-of-Bed flex mobile assistance system is an excellent choice. With just two components, a sensor bar for the mattress base and an intuitive control unit that can be easily attached to the headboard for example, the OOB flex can be retrofitted at any time or transferred between different hospital beds, allowing for adaptable, case-by-case use as needed.

Invisible helper

Positioned beneath the mattress, the system remains completely unobtrusive, ensuring patients experience no restrictions.

Green light for nursing care

Attaching securely to the bed without the need for tools, ensuring a safe, hygienic, and hassle-free setup for nursing staff.

High acceptance

Nursing staff benefit from the ideal user-friendliness of the system.

1 2 3 4

Sensor bar
Sensor bar

This includes components compatible with Puro, Evario, Seta pro, Sicuro tera and Vivendo pro beds, designed for use across all bed model variants and mattress base widths.

Back to overview

Control unit
Control unit

The control unit can be ergonomically positioned on the headboard, footboard, or side panels to accommodate specific care needs. Its power supply is flexible, allowing connection via the bed control system or a standard power socket.

Back to overview

Proven operating concept
Proven operating concept

The user interface features four different time settings, easily activated at the touch of a button. Users are already familiar with this proven and convenient concept from our integrated Out-of-Bed system.

Back to overview

Better orientation at night
Better orientation at night

A reading lamp can be integrated with the OOB flex automatic lighting system, ensuring it switches on whenever the patient gets up for enhanced visibility and safety. This provides better orientation at night and reduces the risk of falls.

Back to overview

Out-of-Bed flex – Your advantages at a glance

  • Flexible use, no technical requirements necessary on the hospital bed
  • Tool-free assembly
  • The selection of time delays is based on the proven design of the Stiegelmeyer OOB handset
  • The power supply comes from an external power supply unit
  • OOB flex can be extended with a reading lamp
  • Flexible option for connecting to stand-ard nurse call systems (in Germany in accordance with DIN VDE 0834)
  • Optionally, transmission of information also possible by wireless transmitter
Out-of-bed flex system Procedure and functionOut-of-bed flex system Procedure and function

Video installation and application Out-of-Bed flex

All additional information at a glance

We are pleased to provide our informational materials for you to download.
